VC08LC18A500DP

TransGuard®多层氧化锌陶瓷抑制器铜包钢、镀层引线精加工 ### 瞬态电压抑制器（ 陶瓷）

表面安装瞬态抑制器 - TransGuard®

多层氧化锌陶瓷抑制器

铜包钢、镀层引线精加工

欧时:
AVX 30A 0.1J 50V钳位电压 陶瓷瞬态电压抑制器 VC08LC18A500DP, 18V最大直流额定电压

艾睿:

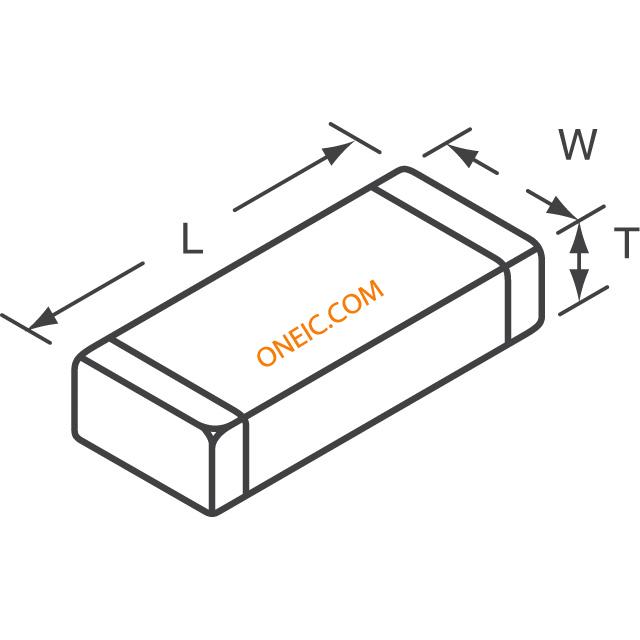

A nonlinear resistor this VC08LC18A500DP MOV manufactured from AVX will change resistance. Its maximum surge current is 30 A. This device&s;s clamping current is 1 A and clamping voltage is 50 V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 14 VAC and the maximum DC voltage rating is 18 VDC. This product is 2.01 mm long and 1.25 mm. Its capacitance value is 80pF. This device is made with multilayer technology.

Allied Electronics:
30A 0.1J 50V Clamp 0805 Ceramic Transient Voltage Suppressor

安富利:
Var MLV 14VAC/18VDC 30A 0805 SMD T/R

Chip1Stop:
Var MLV 14VAC/18VDC 30A 2.0 x 1.2 mm SMD T/R

Verical:
Var MLV 14VAC/18VDC 30A 25V to 40V 0805 SMD T/R

Newark:
# AVX  VC08LC18A500DP  TVS Varistor, 14 V, 18 V, StaticGuard Series, 50 V, 0805 [2012 Metric], Multilayer Varistor MLV

儒卓力:
**VC 08LC AC=18V CL=50V 0,1J **
