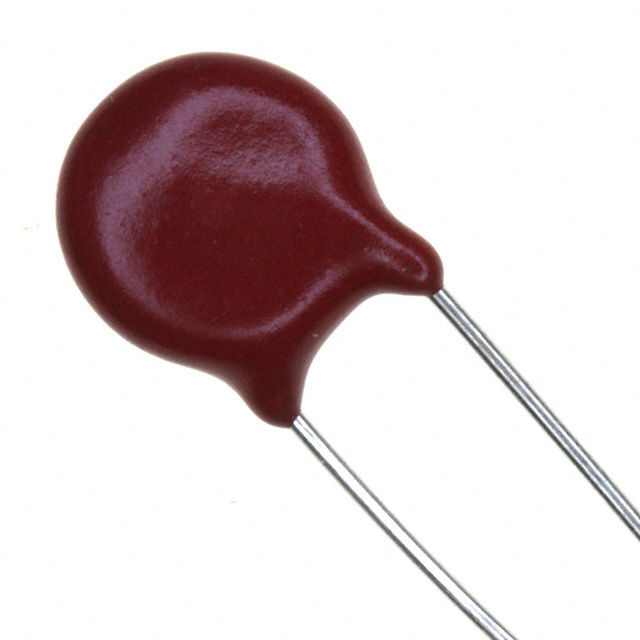

V300LT4P

LT系列 405 VDC 300V RMS 775V 钳位 1200A 70pF 径向引线式压敏电阻

470 V 1.2 kA 变阻器 1 电路 通孔 圆片式 7mm

得捷:
VARISTOR 470V 1.2KA DISC 7MM

立创商城:
V300LT4P

贸泽:
压敏电阻 300V 70pF

艾睿:
When different voltages are applied to this V300LT4P MOV from Littelfuse will change resistance. This part has a pitch of 6 mm. Its maximum surge current is 1200 A. This device&s;s clamping current is 10 A and clamping voltage is 775 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 29 mm tall and 5.6 mm deep with a diameter of 9 mm. This device utilizes metal oxide technology. This varistor has a voltage of 517 V. The maximum AC voltage rating is 300 VAC and the maximum DC voltage rating is 405 VDC. Its capacitance value is 70pF.

Chip1Stop:
Var MOV 300VAC/405VDC 1200A 517V Radial T/R

Verical:
Var MOV 300VAC/405VDC 1200A 517V Thru-Hole Radial T/R

Newark:
# LITTELFUSE  V300LT4P  TVS Varistor, MOV, 300 V, 405 V, LA Series, 775 V, Disc 7mm, Metal Oxide Varistor MOV
