TransGuard®多层氧化锌陶瓷抑制器铜包钢、镀层引线精加工 ### 瞬态电压抑制器( 陶瓷)

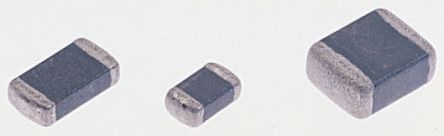

表面安装瞬态抑制器 - TransGuard®
多层氧化锌陶瓷抑制器
铜包钢、镀层引线精加工
欧时:
### 表面安装瞬态抑制器 - TransGuard®多层氧化锌陶瓷抑制器铜包钢、镀层引线精加工 ### 瞬态电压抑制器( 陶瓷)
得捷:

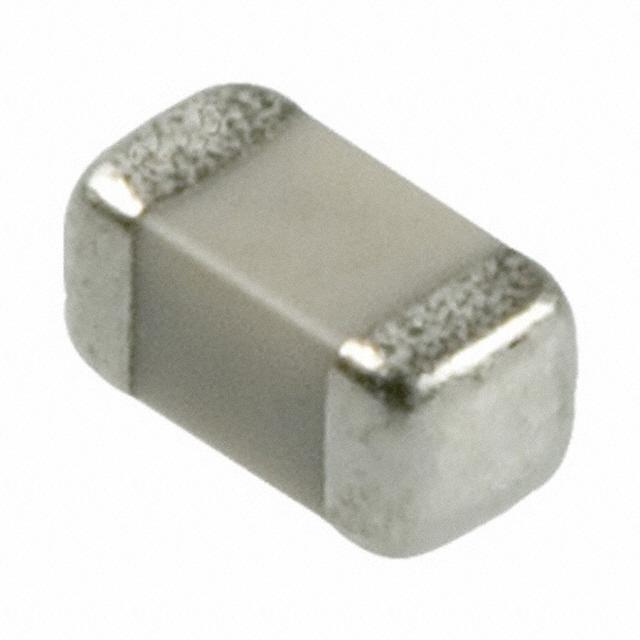

VARISTOR 41V 30A 0603
e络盟:
TVS压敏电阻, 21 V, 30 V, TransGuard系列, 67 V, 0603 [1608 公制], 多层压敏变阻器MLV
艾睿:
Similar to a diode this VC060330A650DP MOV manufactured from AVX is a nonlinear component. Its maximum surge current is 30 A. This device&s;s clamping current is 1 A and clamping voltage is 67 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This device is made with multilayer technology. Its capacitance value is 125pF. Its tolerance voltage is 10%. This varistor has a voltage of 41 V. This product is 1.6 mm long, 0.9 mm tall and 0.8 mm deep. The maximum AC voltage rating is 21 VAC and the maximum DC voltage rating is 30 VDC.
安富利:
Var MLV 21VAC/30VDC 30A 41V 0603 SMD T/R
Chip1Stop:
Var MLV 21VAC/30VDC 30A 41V 0603 SMD T/R
TME:
Arrester: Transguard; SMD; 0603; Uoper max:30VDC; 100mJ
Verical:
Var MLV 21VAC/30VDC 30A 41V 0603 SMD T/R
Newark:
# AVX VC060330A650DP TVS Varistor, 21 V, 30 V, TransGuard Series, 67 V, 0603 [1608 Metric], Multilayer Varistor MLV
儒卓力:
**VC 0603 DC=30V CL=67V 0,1J 30A **
额定电压DC 30 V
额定电压AC 21 V
工作电压 30.0 V
电容 125 pF
击穿电压 4.10 V
电路数 1
电感 1 nH
钳位电压 67 V
最大反向击穿电压 46 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 30 V
额定电压AC Max 21 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.9 mm
封装公制 1608
封装 0603
材质 Ceramic Multilayer
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VC060330A650DP AVX 艾维克斯 | 当前型号 | 当前型号 |
VC060330A650RP 艾维克斯 | 完全替代 | VC060330A650DP和VC060330A650RP的区别 |
VCAS060330A650DP 艾维克斯 | 完全替代 | VC060330A650DP和VCAS060330A650DP的区别 |
VC060330A650DM 艾维克斯 | 完全替代 | VC060330A650DP和VC060330A650DM的区别 |
