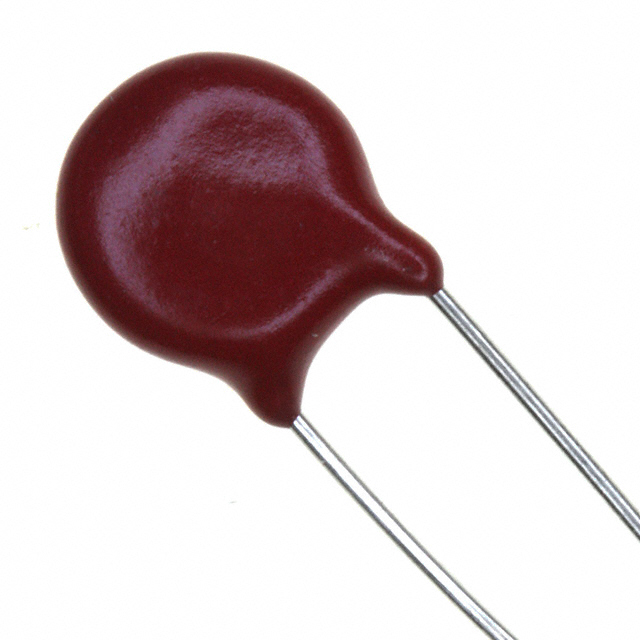

ZT系列 45 VDC 35V RMS 110V 钳位 250A 700pF 径向引线式压敏电阻
Provide proper variable resistance to your circuit by using this MOV from . This part has a pitch of 6 mm. Its maximum surge current is 250 A. This device"s clamping current is 2.5 A and clamping voltage is 110 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This varistor has a voltage of 62 V. This device is made with metal oxide technology. This product is 15 mm tall and 5 mm deep with a diameter of 9 mm. The maximum AC voltage rating is 35 VAC and the maximum DC voltage rating is 45 VDC. Its capacitance value is 0.001035uF.
额定电压DC 45 V
额定电压AC 35 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 700 pF
电路数 1
钳位电压 110 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 45 V
额定电压AC Max 35 V
安装方式 Through Hole
封装 Disc 7mm
宽度 5 mm
高度 15 mm
封装 Disc 7mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V56ZT2P Littelfuse 力特 | 当前型号 | 当前型号 |
V56ZT2 力特 | 完全替代 | V56ZT2P和V56ZT2的区别 |
V56RA8X2749 力特 | 类似代替 | V56ZT2P和V56RA8X2749的区别 |
V56RA8 力特 | 功能相似 | V56ZT2P和V56RA8的区别 |
