V10E300P

UltraMOV 系列 385 VDC 300 Vrms 775 V 钳位 径向 金属氧化物 压敏电阻

470 V 3.5 kA 变阻器 1 电路 通孔 圆片式 10mm

得捷:
VARISTOR 470V 3.5KA DISC 10MM

立创商城:
V10E300P

贸泽:
压敏电阻 300V 10mm Epoxy UltraMOV

艾睿:

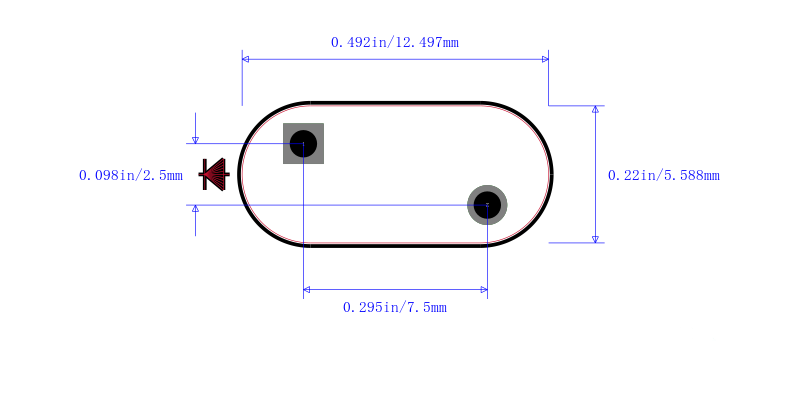

A nonlinear resistor this V10E300P MOV manufactured from Littelfuse will change resistance. This part has a pitch of 7.5 mm. This device&s;s clamping current is 25 A and clamping voltage is 775 V. Its maximum surge current is 3500 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 180pF. This device utilizes metal oxide technology. The maximum AC voltage rating is 300 VAC and the maximum DC voltage rating is 385 VDC. This varistor has a voltage of 517 V. This product is 16 mm tall and 5.6 mm deep with a diameter of 12.5 mm.

Chip1Stop:
Var MOV 300VAC/385VDC 3500A 517V Radial Bulk

Verical:
Var MOV 300VAC/385VDC 3500A 517V Radial Bulk
