VSHLD-FT121

FT121 USB Interface IC Development Board

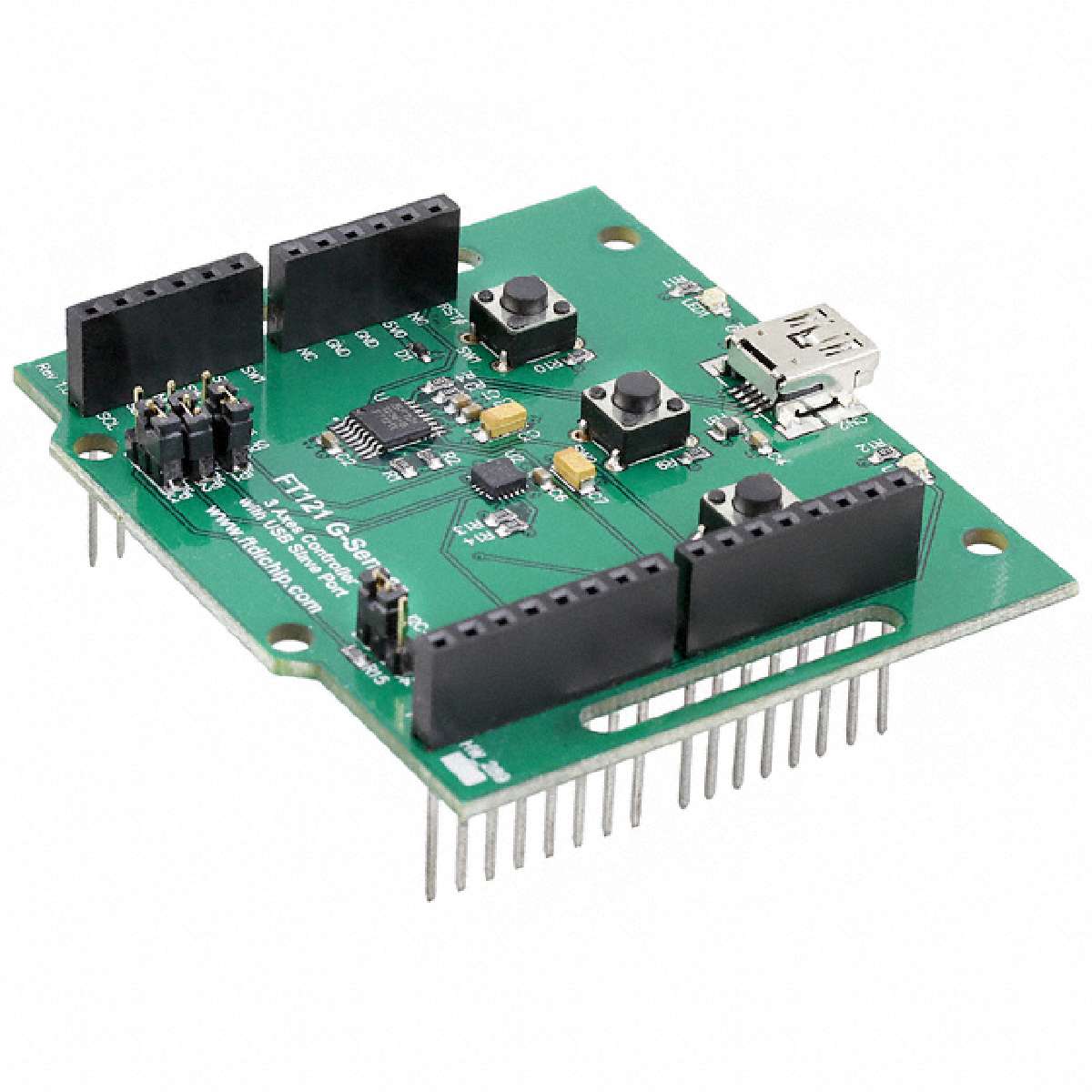

The is a G-Sensor Shield, designed to connect directly to an Arduino Pro development board. The shield allows the micro-controller on the Arduino Pro to access the FT121 USB device controller. Using the FTDI FT121 chipset and a three axes linear accelerometer ST LIS331DLH device, the module may be used to implement a USB HID game controller. The user may also define other interesting applications from the micro-controller board.

.

FT121 enhanced USB device controller with SPI interface

.

LIS313DLH 3-axis linear accelerometer X, Y & Z with selectable full scales of ±2/±4/±8g

.

An SPI interface, data transfer over the SPI bus to the Arduino pro via pin headers

.

Selectable SPI and I²C interface to control the 3-axes accelerometer

.

A serial UART output pin

.

Two accelerometer interrupts

.

Three pushbuttons and two LEDs for HID application

.

5V USB cable power supplied operation

.

Onboard 3.3V regulator to power the accelerometer

.

Mini-B USB connector

.

-40 to +85°C Operating temperature range
