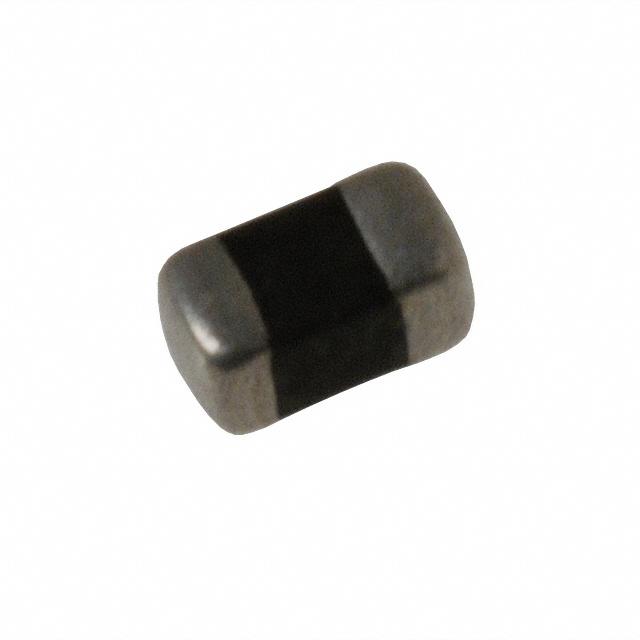

LITTELFUSE V14MLA0603NHAUTO TVS压敏电阻, AEC-Q200 MLA系列, 10 V, 14 V, 34.5 V, 0603 [1608 公制], 多层压敏变阻器MLV
Similar to a diode this MOV manufactured from is a nonlinear component. Its maximum surge current is 30 A. This device"s clamping current is 1 A and clamping voltage is 34.5 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 10 VAC and the maximum DC voltage rating is 14 VDC. This varistor has a voltage of 21.5 V. Its capacitance value is 180pF. This device utilizes multilayer technology. This product is 1.6 mm long, 1 mm tall and 0.8 mm deep.
额定电压DC 14 V
额定电压AC 10 V
电容 180 pF
电路数 1
钳位电压 34.5 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 14 V
额定电压AC Max 10 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 1 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V14MLA0603NHAUTO Littelfuse 力特 | 当前型号 | 当前型号 |
V14MLA0603H 力特 | 完全替代 | V14MLA0603NHAUTO和V14MLA0603H的区别 |
V14MLA0603NH 力特 | 完全替代 | V14MLA0603NHAUTO和V14MLA0603NH的区别 |
V14MLA0603NR 力特 | 类似代替 | V14MLA0603NHAUTO和V14MLA0603NR的区别 |
