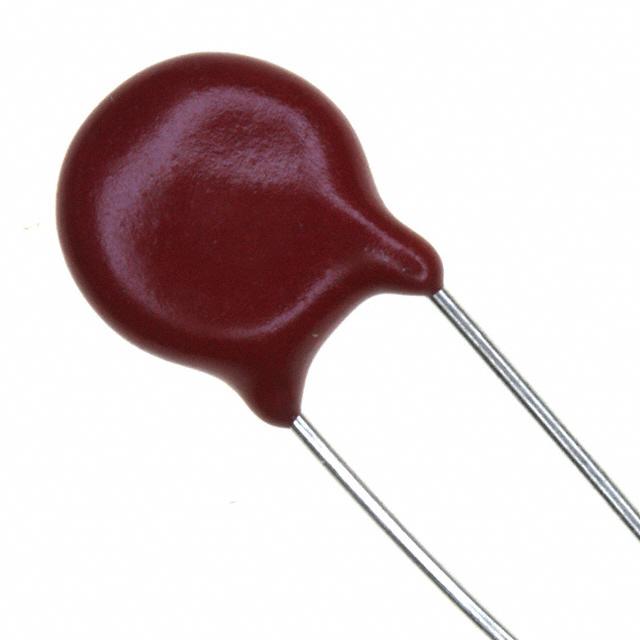

ZS 系列 Ø7 mm 22 V 43 Vcl 径向 直引线 金属氧化物 压敏电阻
Have complete control of resistance in a voltage applied circuit by using this MOV developed by . This part has a pitch of 6 mm. Its maximum surge current is 250 A. This device"s clamping current is 2.5 A and clamping voltage is 43 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 12 mm tall and 5 mm deep with a diameter of 9 mm. The maximum AC voltage rating is 14 VAC and the maximum DC voltage rating is 18 VDC. Its capacitance value is 0.002375uF. This varistor has a voltage of 26 V. This device utilizes metal oxide technology.
额定电压DC 18 V
额定电压AC 14 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 0.002375 µF
电路数 1
钳位电压 43 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 18 V
额定电压AC Max 14 V
安装方式 Through Hole
封装 Disc 7mm
宽度 5 mm
高度 12 mm
封装 Disc 7mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V22ZS1P Littelfuse 力特 | 当前型号 | 当前型号 |
V22ZS1PX2855 力特 | 完全替代 | V22ZS1P和V22ZS1PX2855的区别 |
VE07M00140KDD 艾维克斯 | 类似代替 | V22ZS1P和VE07M00140KDD的区别 |
V22ZS1 力特 | 功能相似 | V22ZS1P和V22ZS1的区别 |
