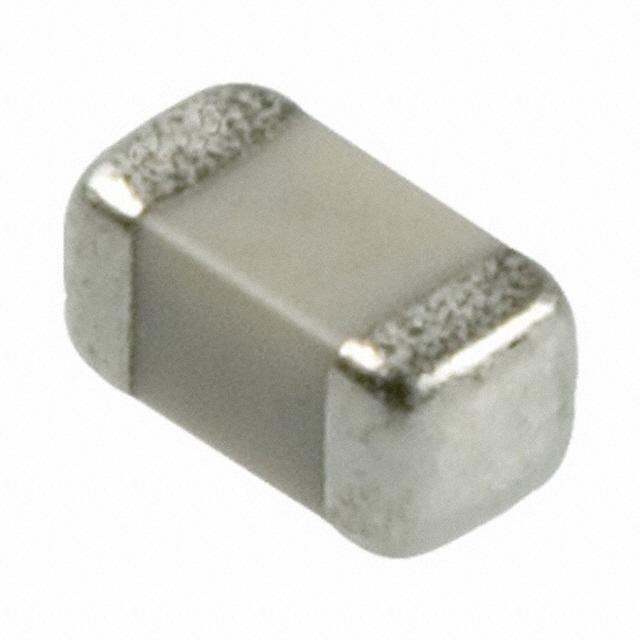

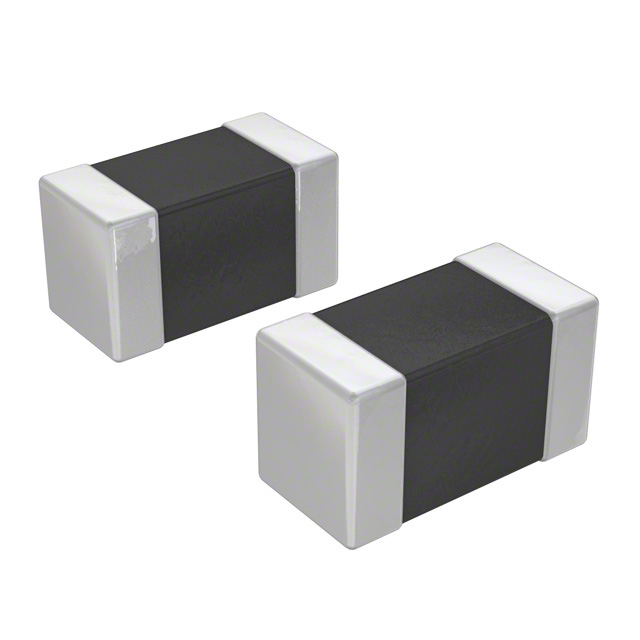

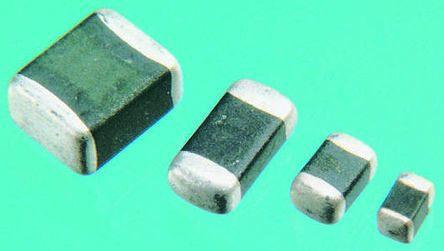

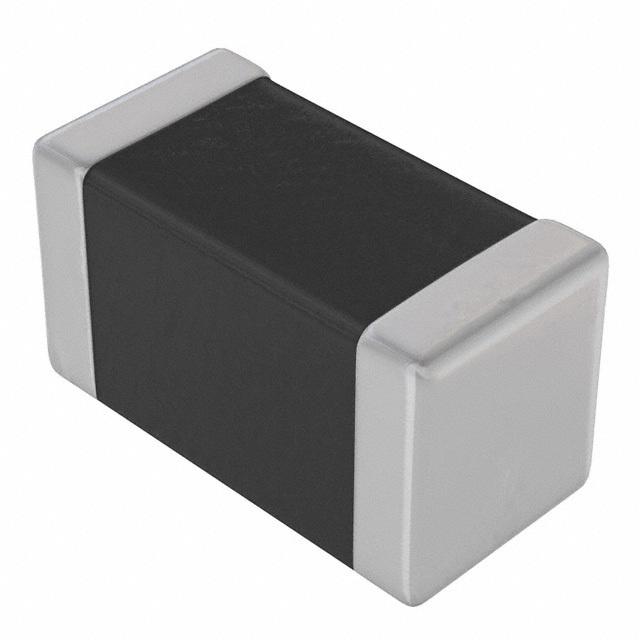

AVX VC060314A300RP TVS压敏电阻, TransGuard系列, 10 V, 14 V, 32 V, 0603 [1608 公制], 多层压敏变阻器MLV
变阻器电压Varistor Voltage| 18.5V \---|--- 浪涌电流Current-Surge| 30A 电路数Number of Circuits| 1 最大AC电压Maximum AC Volts| 10VAC 最大DC电压Maximum DC Volts| 14VDC 能量Energy| 0.10J Description & Applications| TransGuard ® Multilayer Ceramic Transient Voltage Suppressors 描述与应用| TransGuard® AVX多层陶瓷瞬态电压抑制器
欧时:
AVX VC 系列 18.5V 30A 0.1J 32V钳位电压 陶瓷瞬态电压抑制器 VC060314A300RP, 14V最大直流额定电压
艾睿:
Apply different voltages to this VC060314A300RP MOV from AVX in order to change resistance of it. This device&s;s clamping current is 1 A and clamping voltage is 32 V. Its maximum surge current is 30 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This device utilizes multilayer technology. Its capacitance value is 350pF. This product is 1.6 mm long, 0.9 mm tall and 0.8 mm deep. Its tolerance voltage is 12%. The maximum AC voltage rating is 10 VAC and the maximum DC voltage rating is 14 VDC. This varistor has a voltage of 18.5 V.
Allied Electronics:
SMD VARISTOR 0603 14V
安富利:
Var MLV 10VAC/14VDC 30A 18.5V 0603 SMD T/R
Verical:
Var MLV 10VAC/14VDC 30A 18.5V 0603 SMD T/R
Newark:
# AVX VC060314A300RP TVS Varistor, 10 V, 14 V, TransGuard Series, 32 V, 0603 [1608 Metric], Multilayer Varistor MLV
儒卓力:
**VC 0603 DC=14V CL=32V 0,1J 30A **
额定电压DC 14 V
额定电压AC 10 V
工作电压 14.0 V
额定电流 1 mA
电容 350 pF
电路数 1
电感 1 nH
钳位电压 32 V
最大反向击穿电压 20.3 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 14 V
额定电压AC Max 10 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.9 mm
封装公制 1608
封装 0603
材质 Ceramic Multilayer
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VC060314A300RP AVX 艾维克斯 | 当前型号 | 当前型号 |
VC060314A300 艾维克斯 | 完全替代 | VC060314A300RP和VC060314A300的区别 |
