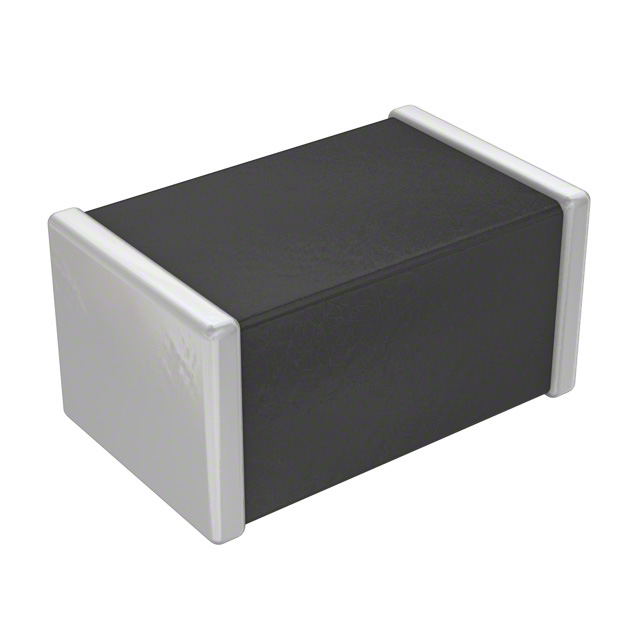

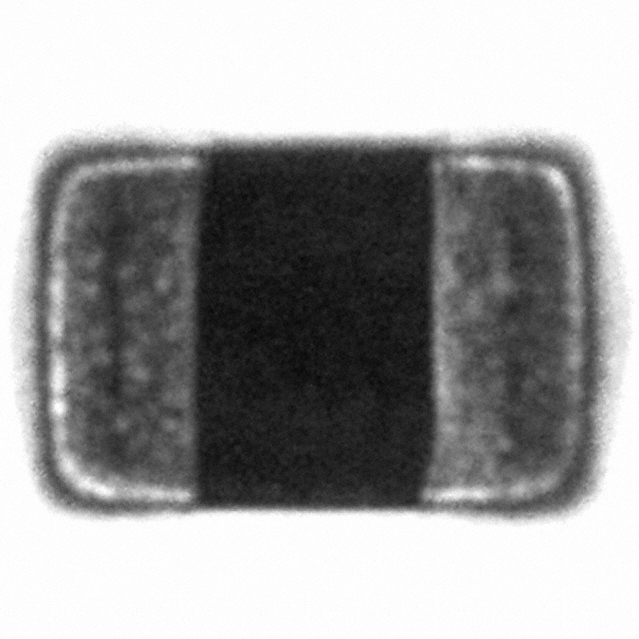

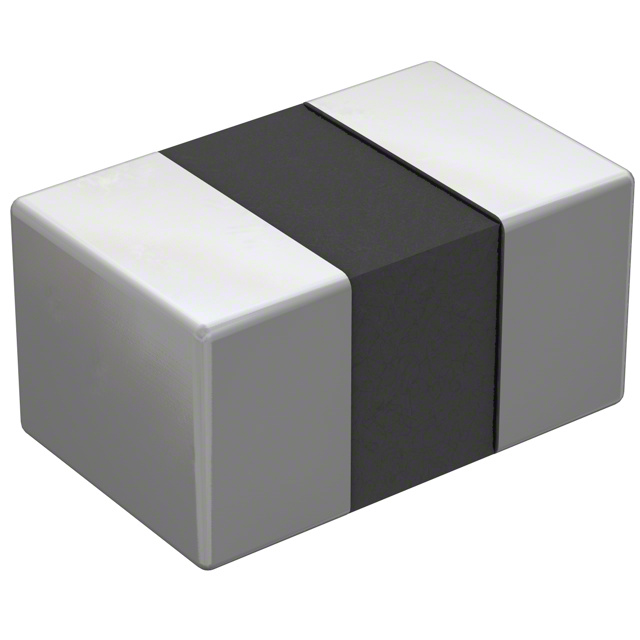

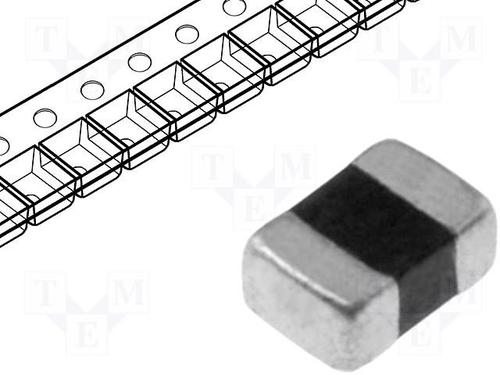

VC080518A400DP

AVX  VC080518A400DP  TVS压敏电阻, TransGuard系列, 13 V, 18 V, 42 V, 0805 [2012 公制], 多层压敏变阻器MLV

表面安装瞬态抑制器 - TransGuard®

多层氧化锌陶瓷抑制器

铜包钢、镀层引线精加工

欧时:
### 表面安装瞬态抑制器 - TransGuard®多层氧化锌陶瓷抑制器铜包钢、镀层引线精加工 ### 瞬态电压抑制器（ 陶瓷）

e络盟:
TVS压敏电阻, 13 V, 18 V, TransGuard系列, 42 V, 0805 [2012 公制], 多层压敏变阻器MLV

艾睿:
Never worry about improper resistance being seen by your components with this VC080518A400DP MOV from AVX, it will change depending on voltages. This device&s;s clamping current is 1 A and clamping voltage is 42 V. Its maximum surge current is 30 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. Its tolerance voltage is 10%. The maximum AC voltage rating is 13 VAC and the maximum DC voltage rating is 18 VDC. This varistor has a voltage of 25.5 V. This device is made with multilayer technology. This product is 2.01 mm long, 1.02 mm tall and 1.25 mm deep. Its capacitance value is 225pF.

Allied Electronics:
VC Series 25.5V 30A 0.1J 42V Clamp 0805Ceramic Transient Voltage Suppressor

安富利:
Var MLV 13VAC/18VDC 30A 25.5V 0805 SMD T/R

TME:
Arrester: Transguard; SMD; 0805; Uoper max:18VDC; 100mJ

Verical:
Var MLV 13VAC/18VDC 30A 25.5V 0805 SMD T/R

Newark:
# AVX  VC080518A400DP  TVS Varistor, 13 V, 18 V, TransGuard Series, 42 V, 0805 [2012 Metric], Multilayer Varistor MLV

儒卓力:
**VC 0805 DC=18V CL=42V 0,1J 30A **
