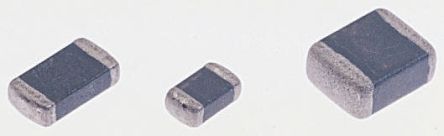

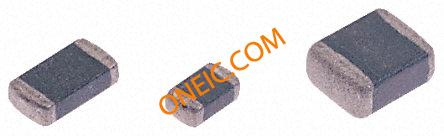

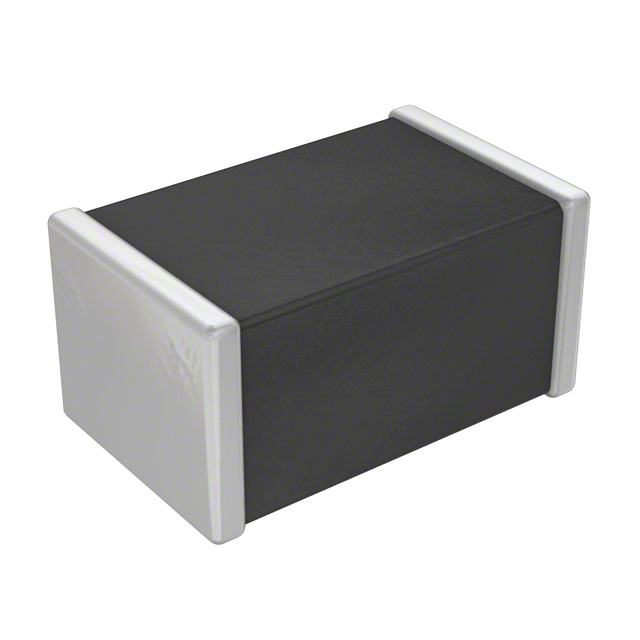

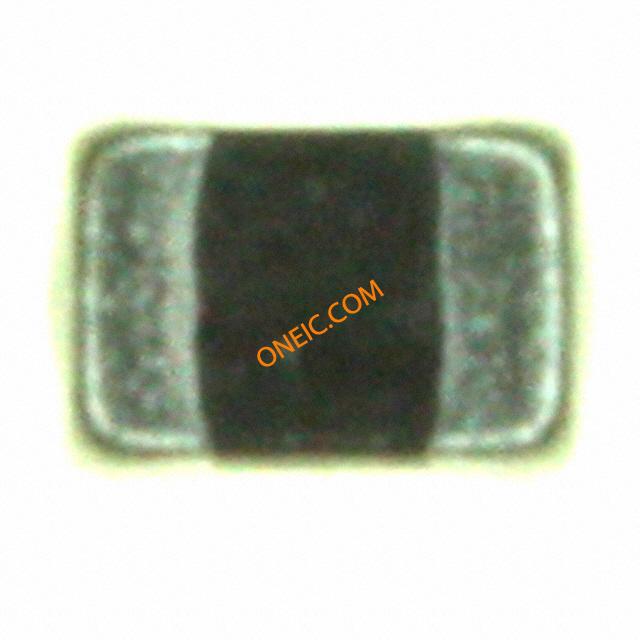

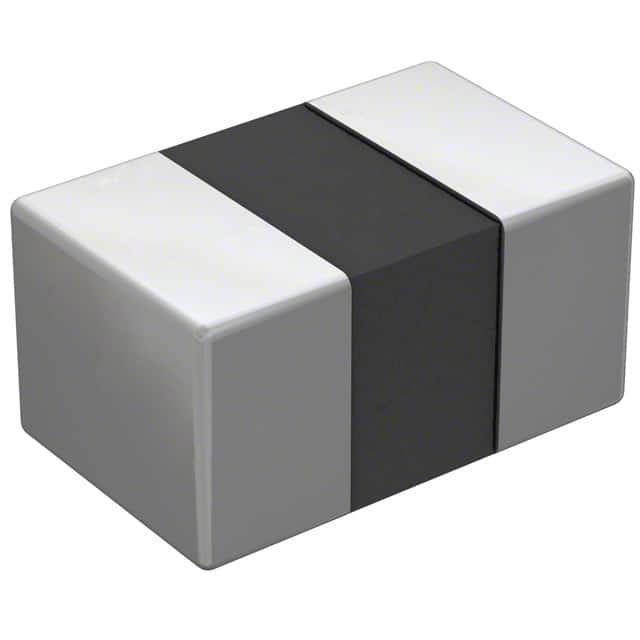

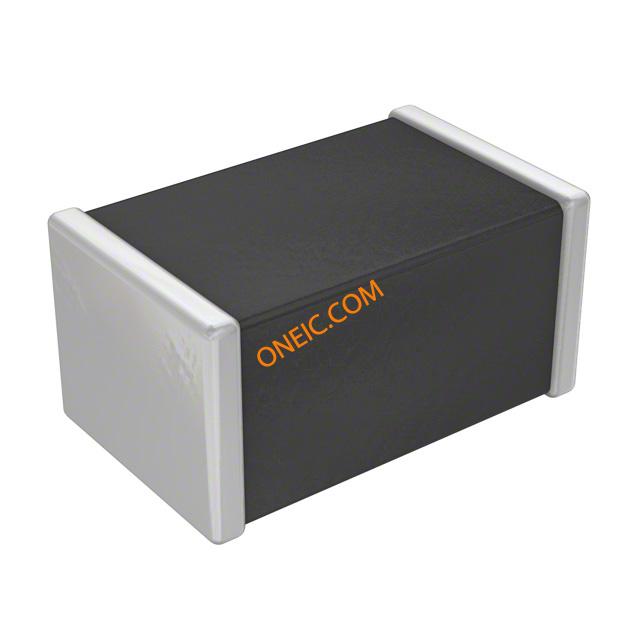

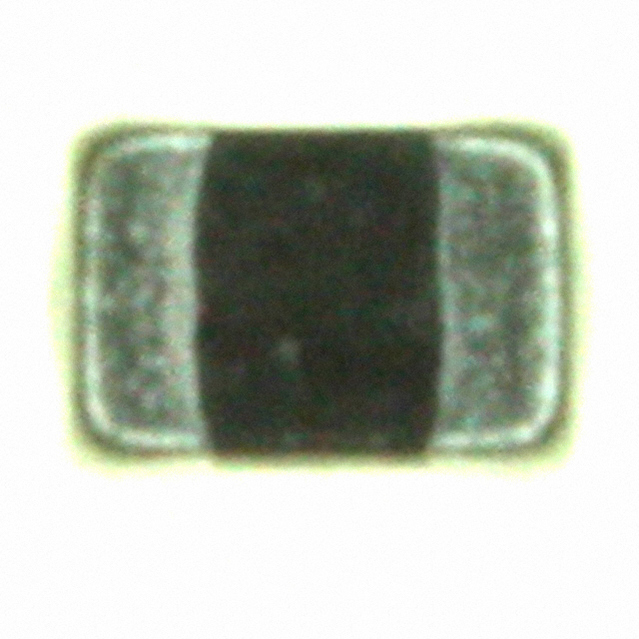

TransGuard®多层氧化锌陶瓷抑制器铜包钢、镀层引线精加工 ### 瞬态电压抑制器( 陶瓷)
表面安装瞬态抑制器 - TransGuard®
多层氧化锌陶瓷抑制器
铜包钢、镀层引线精加工
欧时:
### 表面安装瞬态抑制器 - TransGuard®多层氧化锌陶瓷抑制器铜包钢、镀层引线精加工 ### 瞬态电压抑制器( 陶瓷)
立创商城:
VC080503A100DP
e络盟:
TVS压敏电阻, 2.3 V, 3.3 V, TransGuard系列, 12 V, 0805 [2012 公制], 多层压敏变阻器MLV
艾睿:
Similar to a diode this VC080503A100DP MOV manufactured from AVX is a nonlinear component. This device&s;s clamping current is 1 A and clamping voltage is 12 V. Its maximum surge current is 40 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. The maximum AC voltage rating is 2.3 VAC and the maximum DC voltage rating is 3.3 VDC. This device utilizes multilayer technology. Its tolerance voltage is 20%. This varistor has a voltage of 5 V. Its capacitance value is 0.0014uF. This product is 2.01 mm long, 1.02 mm tall and 1.25 mm deep.
安富利:
Var MLV 2.3VAC/3.3VDC 40A 5V 0805 SMD T/R
Chip1Stop:
Var MLV 2.3VAC/3.3VDC 40A 5V 0805 SMD T/R
TME:
Arrester: Transguard; SMD; 0805; Uoper max:3.3VDC; 100mJ
Verical:
Var MLV 2.3VAC/3.3VDC 40A 5V 0805 SMD T/R
Newark:
# AVX VC080503A100DP TVS Varistor, 2.3 V, 3.3 V, TransGuard Series, 12 V, 0805 [2012 Metric], Multilayer Varistor MLV
儒卓力:
**VC 0805 DC=3,3V CL=12V 0,1J 40A **
Win Source:
VARISTOR 5V 40A 0805 / 5 V 40 A Varistor 1 Circuit Surface Mount, MLCV 0805 2012 Metric
额定电压DC 3.3 V
额定电压AC 2.3 V
工作电压 3.30 V
额定电流 1 mA
电容 0.0014 µF
击穿电压 5 V
电路数 1
电感 1.5 nH
钳位电压 12 V
最大反向击穿电压 5.5 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 3.3 V
额定电压DC Max 3.3 V
额定电压AC Max 2.3 V
安装方式 Surface Mount
封装公制 2012
封装 0805

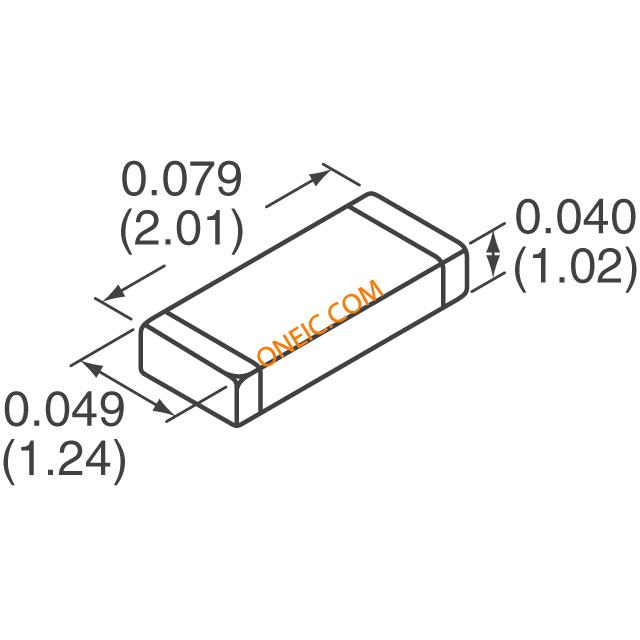

长度 2.01 mm
宽度 1.25 mm
高度 1.02 mm
封装公制 2012
封装 0805
材质 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VC080503A100DP AVX 艾维克斯 | 当前型号 | 当前型号 |
VC080503A100RP 艾维克斯 | 类似代替 | VC080503A100DP和VC080503A100RP的区别 |
B72510T0040M062 爱普科斯 | 功能相似 | VC080503A100DP和B72510T0040M062的区别 |
