LV UltraMOV™ 系列 38 VDC 30V RMS 93 V 钳位 500 A 650 pF 通孔 压敏电阻
变阻器 电路 通孔 圆片式 5mm
得捷:
VARISTOR 47V 500A DISC 5MM
立创商城:
V05E30P
贸泽:
压敏电阻 30V 5mm Epoxy UltraMOV
艾睿:

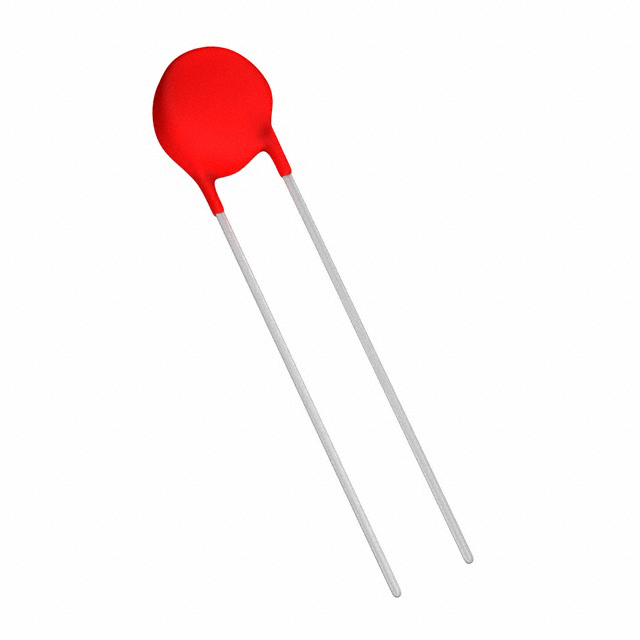

A nonlinear resistor this V05E30P MOV manufactured from Littelfuse will change resistance. This device&s;s clamping current is 1 A and clamping voltage is 93 V. Its maximum surge current is 500 A. This part has a pitch of 6 mm. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device is made with metal oxide technology. This product is 10 mm tall and 5 mm deep with a diameter of 7 mm. This varistor has a voltage of 47 V. Its capacitance value is 650pF. The maximum AC voltage rating is 30 VAC and the maximum DC voltage rating is 38 VDC.
Chip1Stop:
Var MOV 30VAC/38VDC 500A 47V Radial Bulk
Verical:
Var MOV 30VAC/38VDC 500A 47V Radial Bulk
