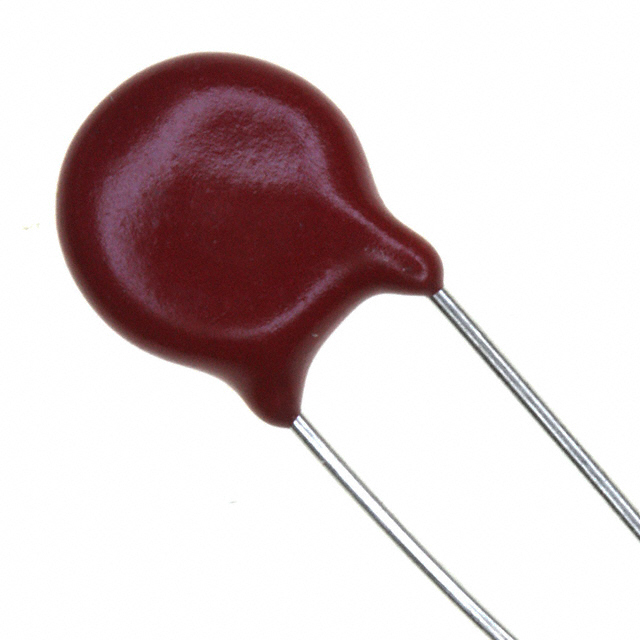

LT系列 200 VDC 150V RMS 395V 钳位 1200A 150pF 径向引线式压敏电阻
Apply different voltages to this MOV from in order to change resistance of it. Its maximum surge current is 1200 A. This device"s clamping current is 10 A and clamping voltage is 395 V. This part has a pitch of 6 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its capacitance value is 150pF. This device is made with metal oxide technology. This varistor has a voltage of 268 V. This product is 15 mm tall and 5.6 mm deep with a diameter of 9 mm. The maximum AC voltage rating is 150 VAC and the maximum DC voltage rating is 200 VDC.
额定电压DC 200 V
额定电压AC 150 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 150 pF
电路数 1
钳位电压 395 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 200 V
额定电压AC Max 150 V
安装方式 Through Hole
封装 Disc 7mm
宽度 5.6 mm
高度 15 mm
封装 Disc 7mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V150LT2P Littelfuse 力特 | 当前型号 | 当前型号 |
V150LT2 力特 | 完全替代 | V150LT2P和V150LT2的区别 |
V150LA1P 力特 | 类似代替 | V150LT2P和V150LA1P的区别 |
V150LA1 力特 | 类似代替 | V150LT2P和V150LA1的区别 |
