V27ZA05P

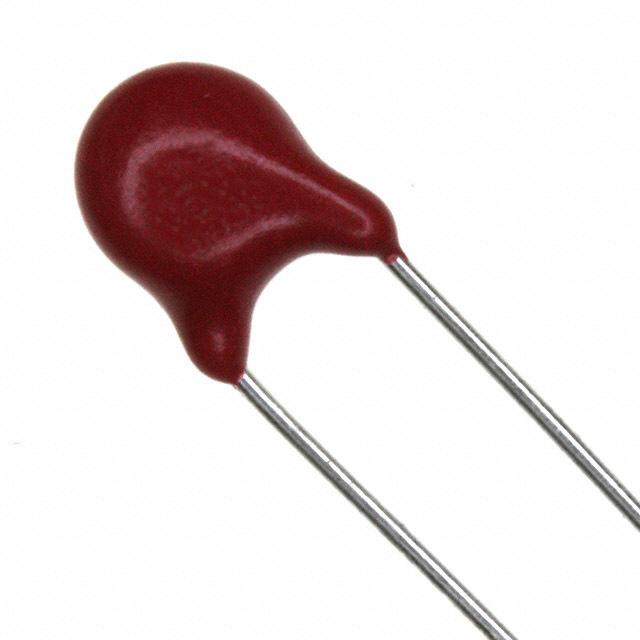

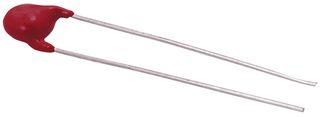

ZA系列 22 VDC 17V RMS 59V 钳位 35A 300pF 径向引线式压敏电阻

变阻器 电路 通孔 圆片式 5mm

得捷:
VARISTOR 27V 100A DISC 5MM

立创商城:
V27ZA05P

贸泽:
Varistors 17V 100A 600pF

艾睿:
Look no further, this V27ZA05P MOV from Littelfuse is a variable resistor. This device&s;s clamping current is 1 A and clamping voltage is 53 V. Its maximum surge current is 100 A. This part has a pitch of 6 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 920pF. This device utilizes metal oxide technology. This varistor has a voltage of 31.1 V. The maximum AC voltage rating is 17 VAC and the maximum DC voltage rating is 22 VDC. This product is 10 mm tall and 5 mm deep with a diameter of 7 mm.

Jameco:
Varistor Metal Oxide 17 Volt AC 22 Volt 100 Amp 31.1 Volt Through Hole

Chip1Stop:
Var MOV 17VAC/22VDC 100A 31.1V Radial Bulk

Newark:
# LITTELFUSE  V27ZA05P  TVS Varistor, 17 V, 22 V, ZA Series, 53 V, Disc 5mm, Metal Oxide Varistor MOV

儒卓力:
**VDR 5mm DC=22V VC=53V 0,25J **
