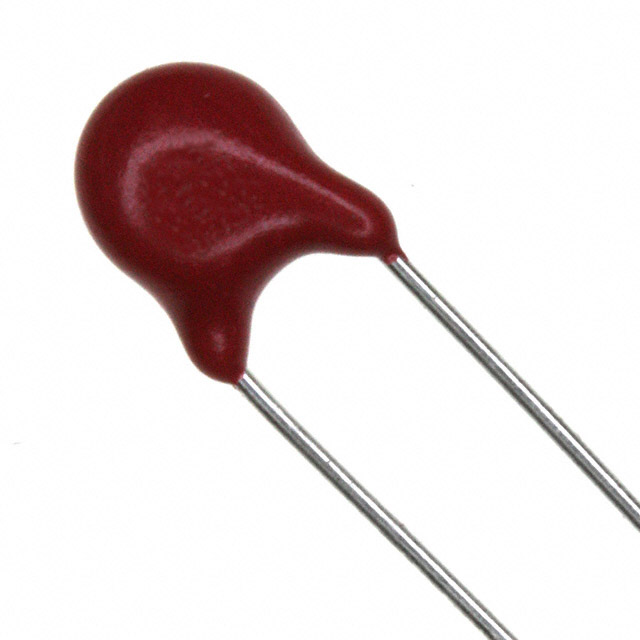

ZA系列 45 VDC 35V RMS 110V 钳位 100A 360pF 径向引线式压敏电阻
Look no further, this MOV from is a variable resistor. This part has a pitch of 6 mm. Its maximum surge current is 100 A. This device"s clamping current is 1 A and clamping voltage is 110 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This varistor has a voltage of 66 V. The maximum AC voltage rating is 35 VAC and the maximum DC voltage rating is 45 VDC. Its capacitance value is 500pF. This device is made with metal oxide technology. This product is 10 mm tall and 5 mm deep with a diameter of 7 mm.
额定电压DC 45 V
额定电压AC 35 V
电容 360 pF
电路数 1
钳位电压 110 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 45 V
额定电压AC Max 35 V
安装方式 Through Hole
封装 Disc 5mm
宽度 5 mm
高度 10 mm
封装 Disc 5mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V56ZA05P Littelfuse 力特 | 当前型号 | 当前型号 |
V56ZU05P 力特 | 完全替代 | V56ZA05P和V56ZU05P的区别 |
V56ZU8P 力特 | 类似代替 | V56ZA05P和V56ZU8P的区别 |
MCV560K05DS Multicomp | 类似代替 | V56ZA05P和MCV560K05DS的区别 |
