VM800B35A-PL

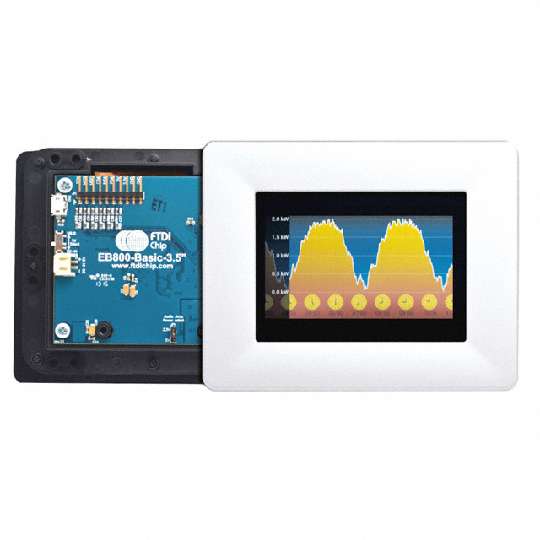

EVE、嵌入式视频引擎基础模块VM800B 开发模块提供高质量面板显示系统，配装 LCD 显示屏，且 FT 800 元件板安装在一个坚固的塑料外壳中。 颜色提供黑色或珍珠白，此显示子系统可以低成本缩短开发时间。 板载 FT800 嵌入式视频引擎 EVE 配有 3.5in、4.3in 或 5in 触摸屏 TFT 显示器 音频功率放大器 扬声器 SPI 串行接口 五个电源输入配置 精密安装座圈 ### 图像外设

The VM800B is a development module for FTDI"s FT800, which is used to develop and demonstrate the functionality of the FT800 Embedded Video Engine, EVE.

This module behaves as an SPI slave, and requires a SPI Master for proper micro-controller interfacing and system integration.

VM800B modules support 3 different LCD panel size options and are designed for industrial or commercial environments with precision fitted bezels in either black -BK or pearl -PL.

* VM800B35A-xx is the 3.5" LCD

* VM800B43A-xx is the 4.3" LCD

* VM800B50A-xx is the 5.0" LCD

**Features:**

The VM800B utilises the FTDI FT800 Embedded Video Engine, EVE. Graphic, audio and touch features of the FT800 chip can be accessed with the VM800B. For a full list of the FT800’s features please see the FT800 datasheet. The VM800B has the following features:

* Ready to use LCD module

* Integrated with resistive touch screen LCD panel

* On board LCD backlight LED Driver

* On board audio power amplifier and micro speaker

* Flexible power supply. Powering the VM800B using either a 2.1 mm power jack , SPI master connector or via USB Micro-B port

* 5 V tolerant buffers when used with a 5 V SPI Master

* Precision fitted bezel in black-BK or pearl -PL
