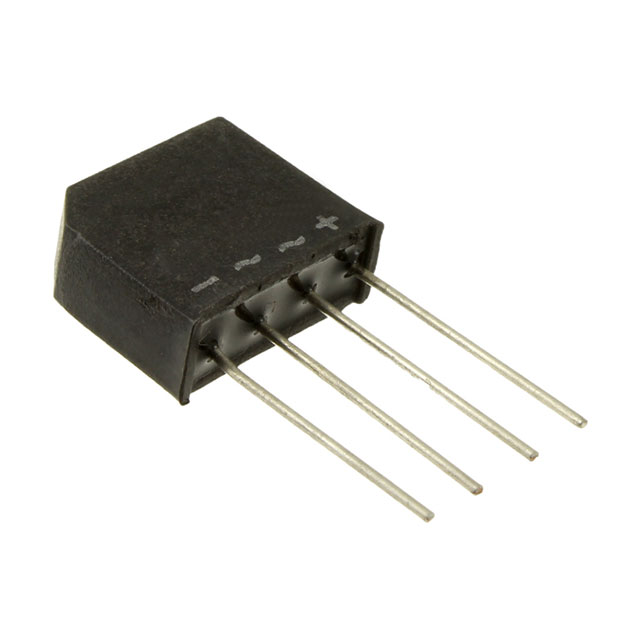

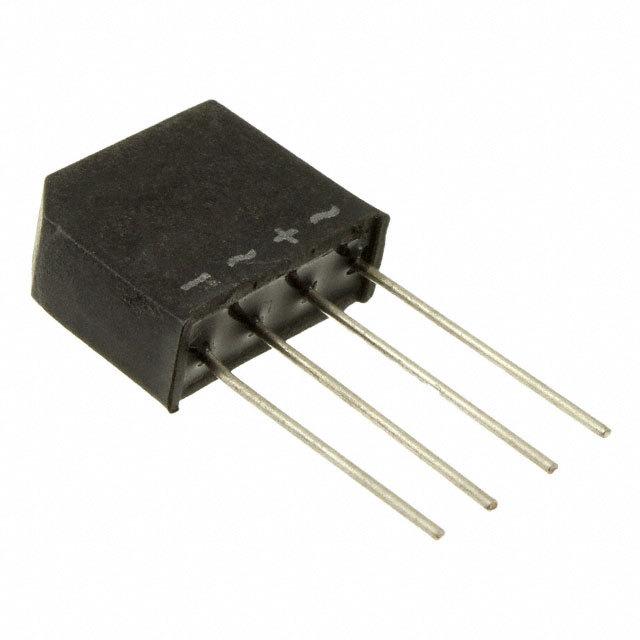

VISHAY VS-2KBB80R. 二极管 桥式整流, 单相, 800 V, 1.9 A, 通孔安装, 1.1 V, 4 引脚
The is a single-phase Bridge Rectifier with high surge current capability and compact construction. It consisting of four silicon diodes in a plastic encapsulation. This bridge rectifier is suitable for printed circuit board mounting.
额定电流 2.00 A
针脚数 4
正向电压 1.1V @1.9A
正向电流 1.9 A
最大正向浪涌电流(Ifsm) 52 A
正向电压Max 1.1 V
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 4
封装 KBB-2
长度 17.5 mm
宽度 6.5 mm
高度 15 mm
封装 KBB-2
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 Consumer Electronics, Industrial, 消费电子产品, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
