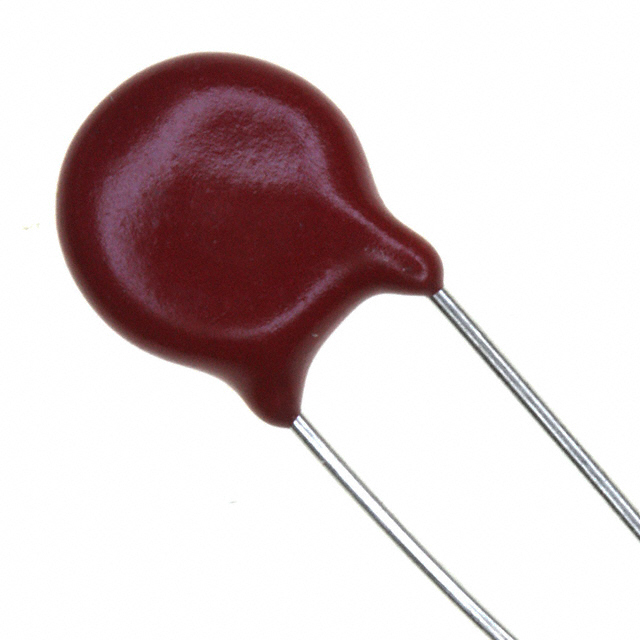

ZT系列 14 VDC 10V RMS 36V 钳位 250A 200pF 径向引线式压敏电阻
Are you looking for a nonlinear resistor? This MOV from will exceed your needs! This part has a pitch of 6 mm. This device"s clamping current is 2.5 A and clamping voltage is 36 V. Its maximum surge current is 250 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 15 mm tall and 5 mm deep with a diameter of 9 mm. The maximum AC voltage rating is 10 VAC and the maximum DC voltage rating is 14 VDC. This varistor has a voltage of 21.6 V. Its capacitance value is 0.0027uF. This device utilizes metal oxide technology.
额定电压DC 14 V
额定电压AC 10 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 2000 pF
电路数 1
钳位电压 36 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 14 V
额定电压AC Max 10 V
安装方式 Through Hole
封装 Disc 7mm
宽度 5 mm
高度 15 mm
封装 Disc 7mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V18ZT1P Littelfuse 力特 | 当前型号 | 当前型号 |
V18ZT1 力特 | 完全替代 | V18ZT1P和V18ZT1的区别 |
V18ZS1P 力特 | 类似代替 | V18ZT1P和V18ZS1P的区别 |
