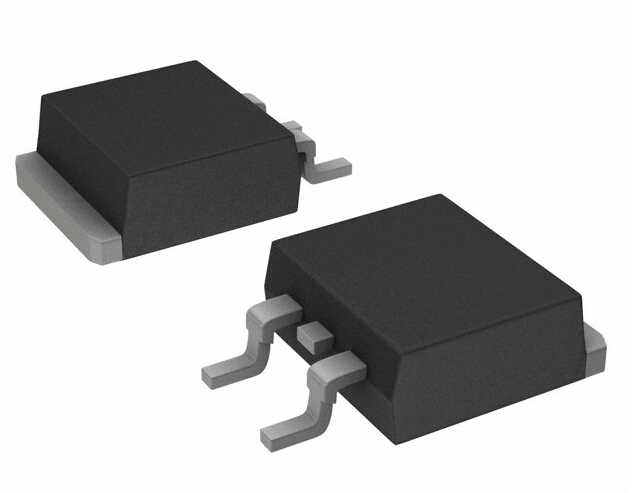

VISHAY VS-50WQ06FNPBF. 小信号肖特基二极管, 单, 60 V, 5.5 A, 570 mV, 320 A, 150 °C
The 50WQ06FNPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
**Features:
* **Popular D-PAK Outline
* Small Foot Print, Surface Mountable
* Low Forward Voltage Drop
* High Frequency Operation
* Guard Ring for Enhanced Ruggedness and Long Term Reliability
* Lead Pb-Free PbF Suffix
* Designed and Qualified for AEC Q101 Level
针脚数 3
正向电压 0.74 V
热阻 3℃/W RθJC
正向电流 5.5 A
最大正向浪涌电流（Ifsm） 320 A
正向电压Max 570 mV
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 TO-252-3
长度 6.73 mm
高度 6.22 mm
封装 TO-252-3
工作温度 -40℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Each
制造应用 Computers & Computer Peripherals, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-50WQ06FNPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-50WQ06FNTRPBF 威世 | 类似代替 | VS-50WQ06FNPBF和VS-50WQ06FNTRPBF的区别 |
VS-50WQ06FNTRRPBF 威世 | 功能相似 | VS-50WQ06FNPBF和VS-50WQ06FNTRRPBF的区别 |
50WQ06FNPBF 威世 | 功能相似 | VS-50WQ06FNPBF和50WQ06FNPBF的区别 |
