EVE，嵌入式视频引擎板FT800 嵌入式视频引擎 EVE 的 VM800C 信用卡开发板，可用于自身或与匹配的 LCD 面板。板载 FT800 嵌入式视频引擎 EVE 配有或未配有 3.5in、4.3in 或 5in 触摸屏 TFT 显示器 音频功率放大器 扬声器 SPI 串行接口 五个电源输入配置 ### 图像外设

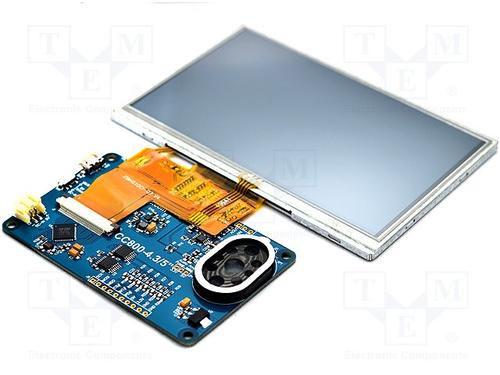

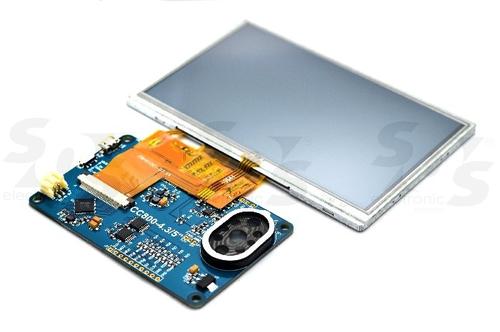

The VM800C is a development module for FTDI"s FT800, which is used to develop and demonstrate the functionality of the FT800 Embedded Video Engine, EVE. This module behaves as an SPI slave, and requires a SPI Master for proper micro-controller interfacing and system integration.
VM800C modules support 3 different LCD panel size options. Users can also connect to different LCD screens as long as they meet the FT800 technical specification and fit the VM800C LCD connector.
* VM800C35A-D, 3.3/5 V micro-controller adaptor card with 3.5" LCD touch display
* VM800C43A-D, 3.3/5 V micro-controller adaptor card with 4.3" LCD touch display
* , 3.3/5 V micro-controller adaptor card with 5.0" LCD
* VMFT800C35A-N, 3.3/5 V micro-controller adaptor card, with 3.5" LCD connector but no display
* VMFT800C43A-N, 3.3/5 V micro-controller adaptor card, with 4.3/5.0" LCD connector but no display
**Features:**
The VM800C utilises the FTDI FT800 Embedded Video Engine. Graphic, audio and touch features of the FT800 can be accessed with the VM800C. For a full list of the FT800’s features please see the FT800 datasheet.
The VM800C has the following features:
* Ready to use LCD module
* Part types with LCDs supporting resistive touch with pressure sensing
* On board LCD backlight LED Driver
* Supports mono audio output
* On board audio power amplifier and micro speaker
* Flexible power supply. Powering the VM800C using either a 2.1 mm power jack , SPI master connector or via USB Micro-B port
* 5 V tolerant buffers when used with a 5 V SPI Master
