VISHAY VS-MUR820PBF. 快速/超快二极管, 单, 200 V, 8 A, 975 mV, 25 ns, 100 A
The is an Ultra-fast Recovery Rectifier specifically designed with optimized performance of forward voltage drop and ultra-fast recovery time. The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in the output rectification stage of SMPS, UPS, DC/DC converters as well as free-wheeling diode in low voltage inverters. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
- .
- Low forward voltage drop
- .
- Low leakage current
正向电压 975 mV
热阻 3℃/W RθJC
反向恢复时间 25 ns
正向电流 8 A
最大正向浪涌电流（Ifsm） 100 A
正向电压Max 975 mV
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2

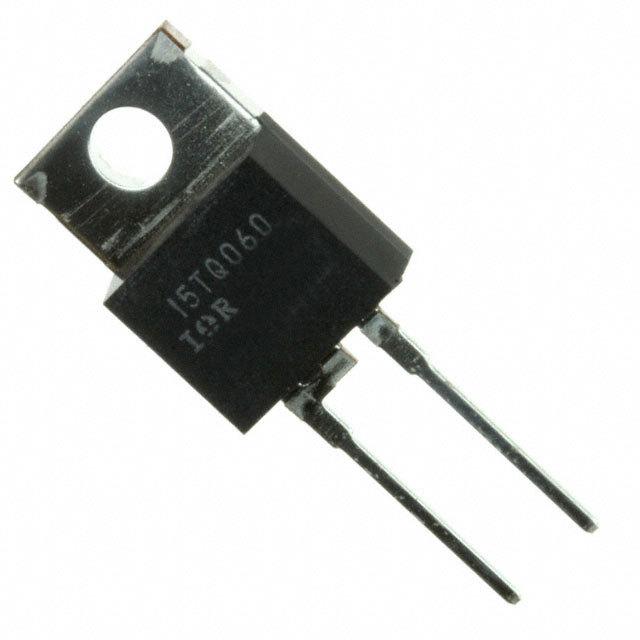

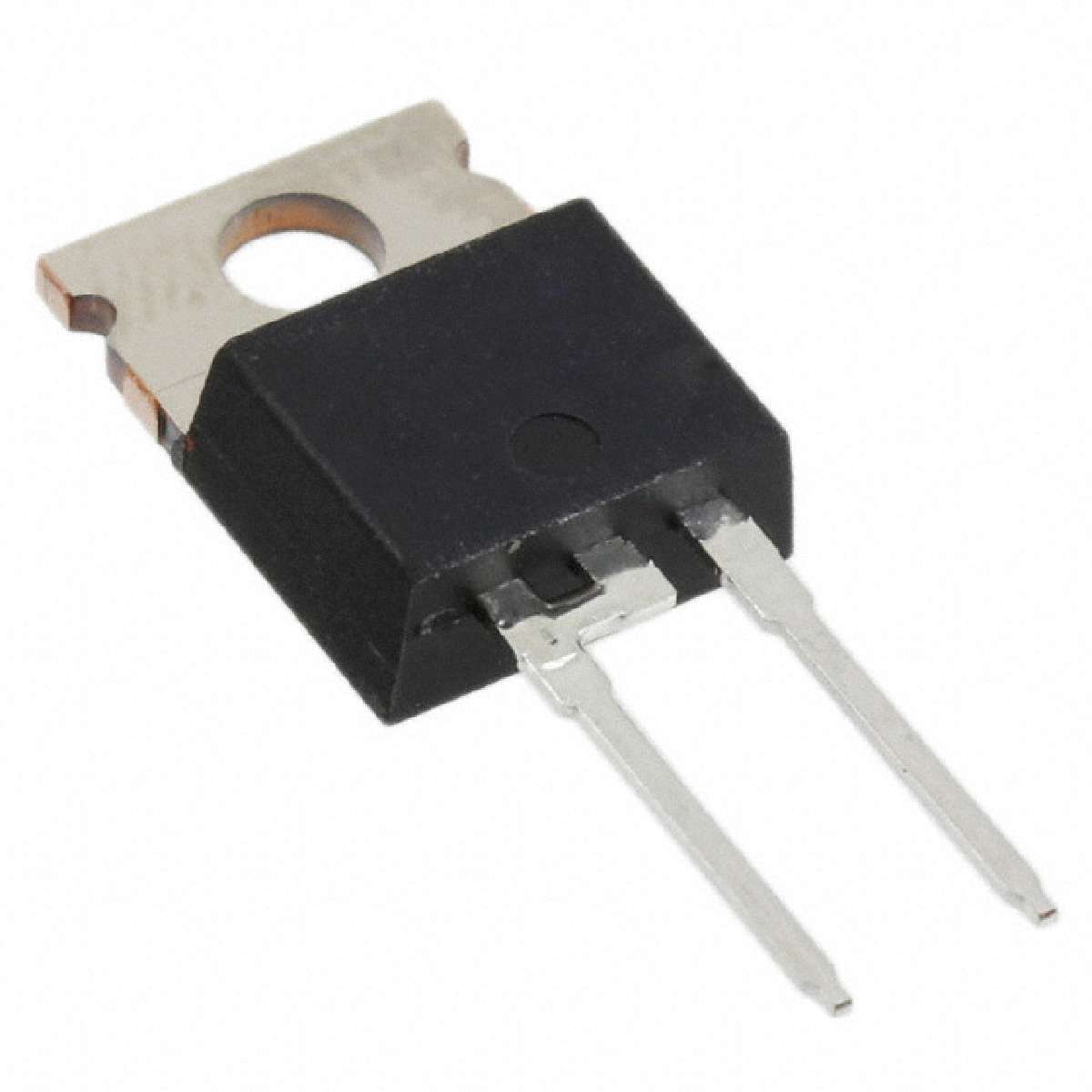

封装 TO-220-2
长度 10.51 mm
宽度 4.65 mm
高度 15.25 mm
封装 TO-220-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Industrial, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-MUR820PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
MUR820 威世 | 类似代替 | VS-MUR820PBF和MUR820的区别 |
MUR820G 安森美 | 功能相似 | VS-MUR820PBF和MUR820G的区别 |
STTH802B-TR 意法半导体 | 功能相似 | VS-MUR820PBF和STTH802B-TR的区别 |
