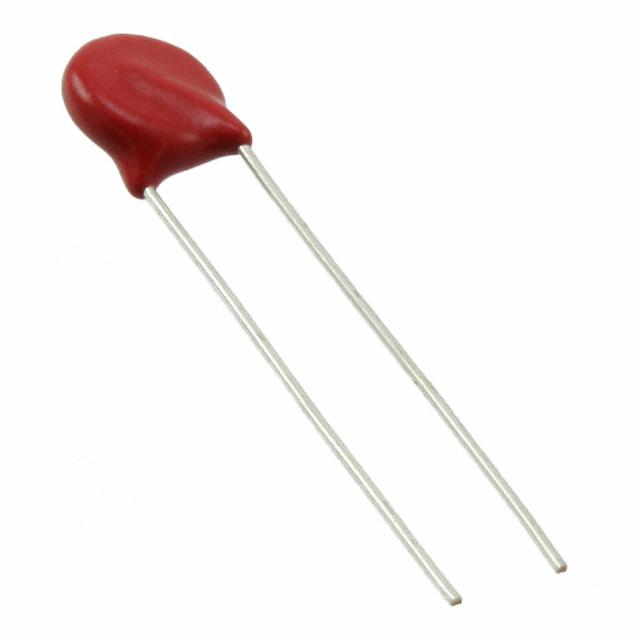

V07E130P

LITTELFUSE  V07E130P  金属氧化物MOV压敏电阻

变阻器 电路 通孔 圆片式 7mm

得捷:
VARISTOR 205V 1.75KA DISC 7MM

立创商城:
V07E130P

e络盟:
压敏变阻器, 金属氧化物, 170V, 340V, 径向引线

艾睿:
When different voltages are applied to this V07E130P MOV from Littelfuse will change resistance. Its maximum surge current is 1750 A. This device&s;s clamping current is 10 A and clamping voltage is 340 V. This part has a pitch of 5 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device utilizes metal oxide technology. This product is 12 mm tall and 5.6 mm deep with a diameter of 9 mm. Its capacitance value is 180pF. This varistor has a voltage of 226 V. The maximum AC voltage rating is 130 VAC and the maximum DC voltage rating is 170 VDC.

Allied Electronics:
Varistor, Circuit Protection; 130VAC, 170VDC; 340V; 10A; Metal Oxide; 180pF

Chip1Stop:
Var MOV 130VAC/170VDC 1750A 226V Radial Bulk

Verical:
Var MOV 130VAC/170VDC 1750A 225.5V Thru-Hole Radial Bulk

Newark:
# LITTELFUSE  V07E130P  TVS Varistor, MOV, 130 V, 170 V, UltraMOV Series, 340 V, Disc 7mm, Metal Oxide Varistor MOV
