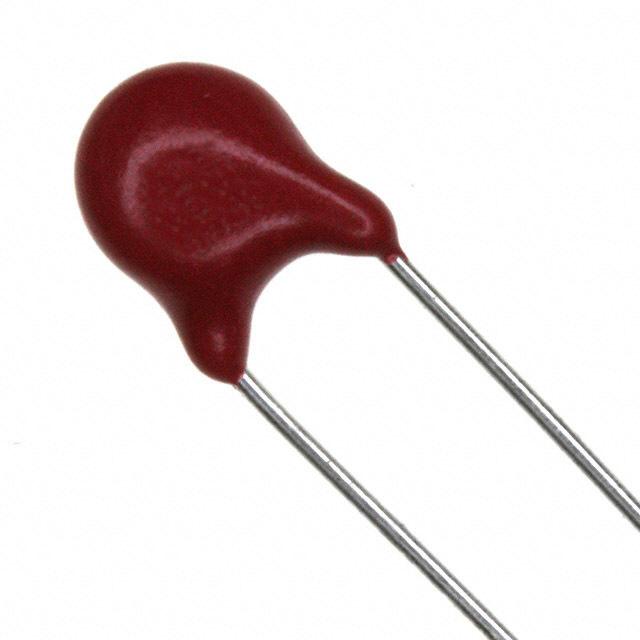

ZA Series 102VDC 75V RMS 205V Clamp 400A 140pF Radial Metal Oxide Varistor
Never worry about improper resistance being seen by your components with this MOV from , it will change depending on voltages. This part has a pitch of 6 mm. Its maximum surge current is 400 A. This device"s clamping current is 5 A and clamping voltage is 205 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 13 mm tall and 5 mm deep with a diameter of 7 mm. Its capacitance value is 250pF. The maximum AC voltage rating is 75 VAC and the maximum DC voltage rating is 102 VDC. This varistor has a voltage of 138 V. This device is made with metal oxide technology.
额定电压DC 102 V
额定电压AC 75.0 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 140 pF
电路数 1
钳位电压 205 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 102 V
额定电压AC Max 75 V
安装方式 Through Hole
封装 Disc 5mm
高度 13 mm
封装 Disc 5mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V120ZT05P Littelfuse 力特 | 当前型号 | 当前型号 |
V120ZS05P 力特 | 完全替代 | V120ZT05P和V120ZS05P的区别 |
V120ZA05PX2855 力特 | 完全替代 | V120ZT05P和V120ZA05PX2855的区别 |
V120ZU05P 力特 | 完全替代 | V120ZT05P和V120ZU05P的区别 |
