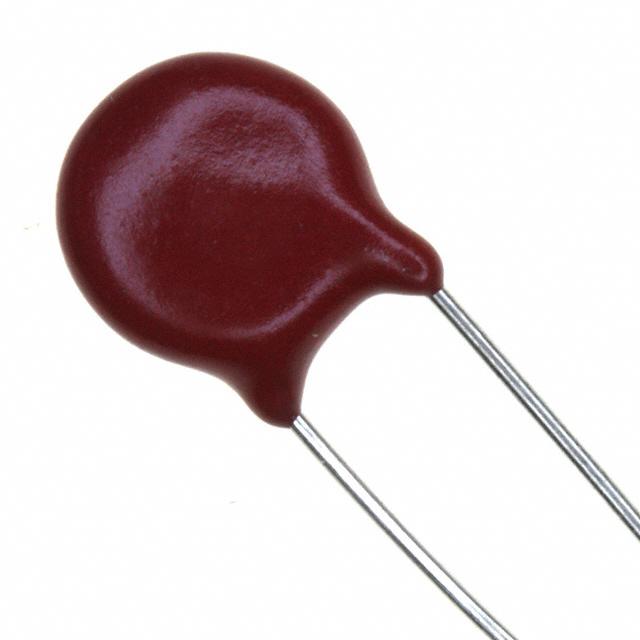

V385LC7P

Var MOV 385VAC/505VDC 1200A 682V Thru-Hole Radial Bulk

Provide proper variable resistance to your circuit by using this MOV from . This part has a pitch of 6 mm. This device"s clamping current is 10 A and clamping voltage is 1025 V. Its maximum surge current is 1200 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This product is 15 mm tall and 7.3 mm deep with a diameter of 9 mm. This varistor has a voltage of 682 V. The maximum AC voltage rating is 385 VAC and the maximum DC voltage rating is 505 VDC. This device utilizes metal oxide technology. Its capacitance value is 60pF.
