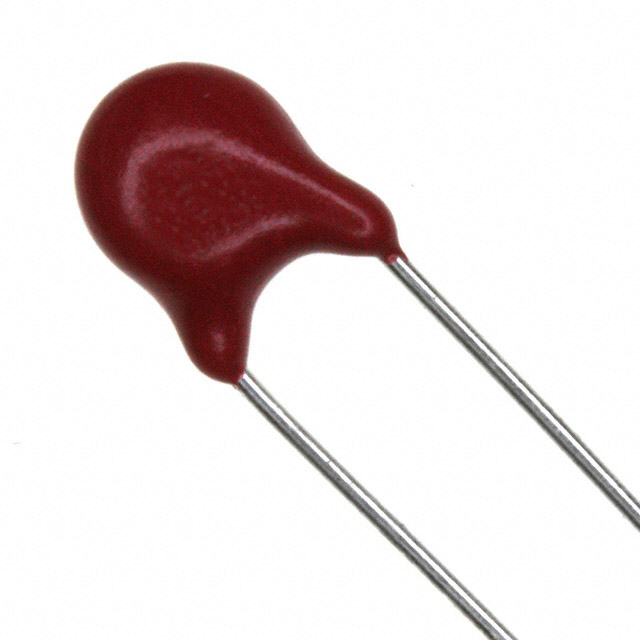

LITTELFUSE V8ZA05P 金属氧化物MOV压敏电阻
变阻器 电路 通孔 圆片式 5mm
得捷:
VARISTOR 8.5V 50A DISC 5MM
立创商城:
V8ZA05P
贸泽:
Varistors Varistors 50A2000pF
e络盟:
压敏变阻器, 金属氧化物, 5.5V, 30V, 径向引线
艾睿:
Never worry about improper resistance being seen by your components with this V8ZA05P MOV from Littelfuse, it will change depending on voltages. This device&s;s clamping current is 1 A and clamping voltage is 30 V. Its maximum surge current is 50 A. This part has a pitch of 6 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10 mm tall and 5 mm deep with a diameter of 7 mm. This device is made with metal oxide technology. The maximum AC voltage rating is 4 VAC and the maximum DC voltage rating is 5.5 VDC. Its capacitance value is 0.002uF. This varistor has a voltage of 11 V.
Chip1Stop:
Var MOV 4VAC/5.5VDC 50A 11V Radial Automotive Bulk
Newark:
# LITTELFUSE V8ZA05P TVS Varistor, MOV, 4 V, 5.5 V, ZA Series, 30 V, Disc 5mm, Metal Oxide Varistor MOV
额定电压DC 5.5 V
额定电压AC 4 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 1400 pF
电路数 1
钳位电压 30 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 5.5 V
额定电压AC Max 4 V
安装方式 Through Hole
封装 Disc 5mm
宽度 5 mm
高度 10 mm
封装 Disc 5mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V8ZA05P Littelfuse 力特 | 当前型号 | 当前型号 |
V8ZS05P 力特 | 完全替代 | V8ZA05P和V8ZS05P的区别 |
V8ZU05P 力特 | 完全替代 | V8ZA05P和V8ZU05P的区别 |
V8ZT05P 力特 | 类似代替 | V8ZA05P和V8ZT05P的区别 |
