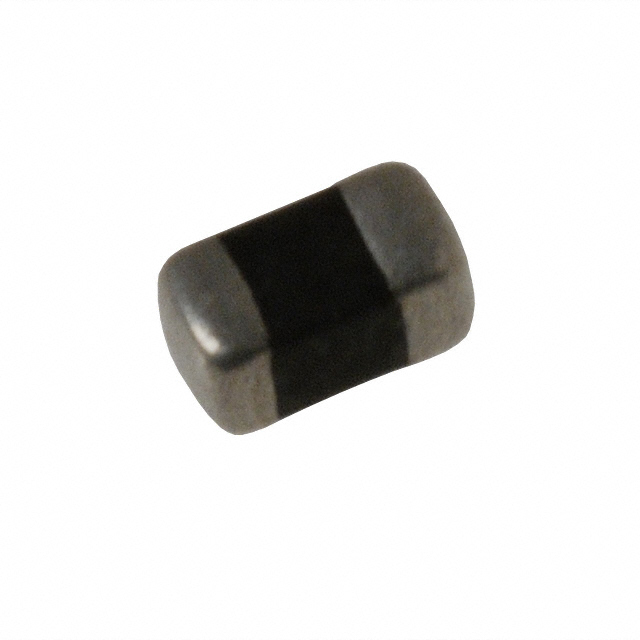

LITTELFUSE V14MLA0603H TVS压敏电阻, ML系列, 10 V, 14 V, 34.5 V, 0603 [1608 公制], 多层压敏变阻器MLV
Description
The MLA Series also known as "ML" series family of transient voltage surge suppression devices is based on the Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance EMC. The MLA Series is typically applied to protect integrated circuits and other components at the circuit board level.
Features
• RoHS compliant
• Leadless 0402, 0603, 0805, 1206 and 1210 chip sizes
• Multilayer ceramic construction technology
• -55°C to +125°C operating temp. range
• Operating voltage range VMDC = 5.5V to 120V
• Rated for surge current 8 x 20μs
• Rated for energy 10 x 1000μs
• Inherent bi-directional clamping
• Standard low capacitance types available
Applications
• Suppression of inductive switching or other transient events such as EFT and surge voltage at
the circuit board level
• ESD protection for IEC 61000-4-2, MIL-STD-883c method 3015.7, and other industry specifications see also the MLE or MLN Series
• Provides on-board transient voltage protection for ICS and transistors
• Used to help achieve electromagnetic compliance of end products
• Replace larger surface mount TVS Zeners in many applications
额定电压DC 14 V
额定电压AC 10 V
电容 180 pF
额定功率 30.0 mW
电路数 1
易燃性等级 UL 94 V-0
钳位电压 34.5 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 14 V
额定电压AC Max 10 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 1 mm
封装公制 1608
封装 0603
材质 Ceramic Multilayer
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V14MLA0603H Littelfuse 力特 | 当前型号 | 当前型号 |
V14MLA0603NH 力特 | 完全替代 | V14MLA0603H和V14MLA0603NH的区别 |
V14MLA0603NHAUTO 力特 | 完全替代 | V14MLA0603H和V14MLA0603NHAUTO的区别 |
V14MLA0603NA 力特 | 功能相似 | V14MLA0603H和V14MLA0603NA的区别 |
