VF20150SG-E3/4W

高压Trench MOS势垒肖特基整流器超低VF = 0.57 V在IF = 5 A High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.57 V at IF = 5 A

FEATURES

• Trench MOS Schottky technology

• Low forward voltage drop, low power losses

• High efficiency operation

• Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C for TO-263AB package

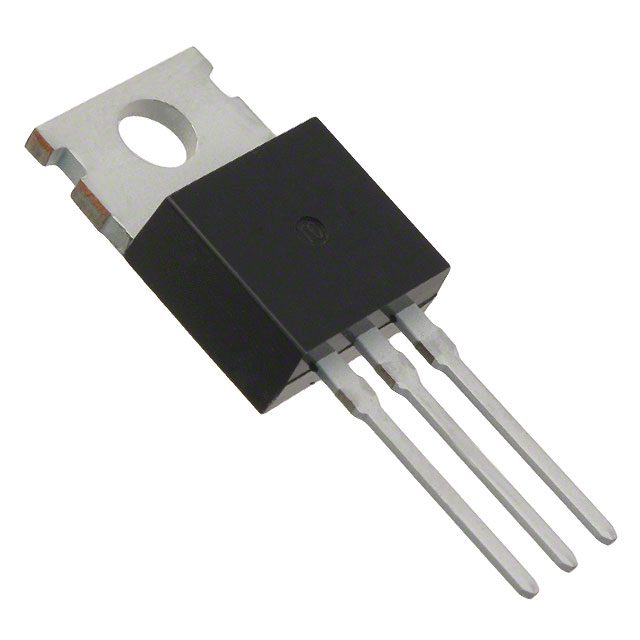

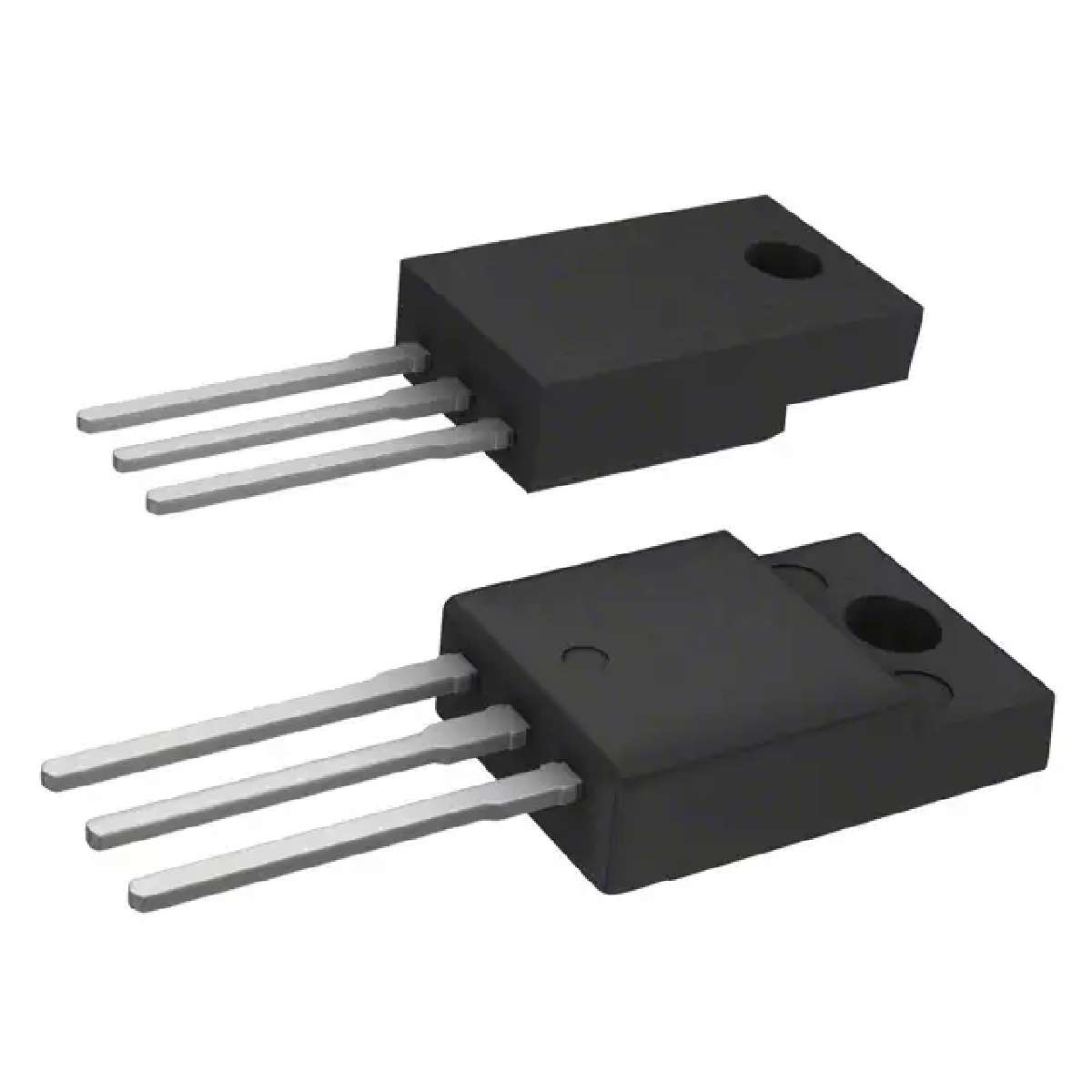

• Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 for TO-220AB, ITO-220AB, and TO-262AA package

• Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC

TYPICAL APPLICATIONS

  For use in high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection.
