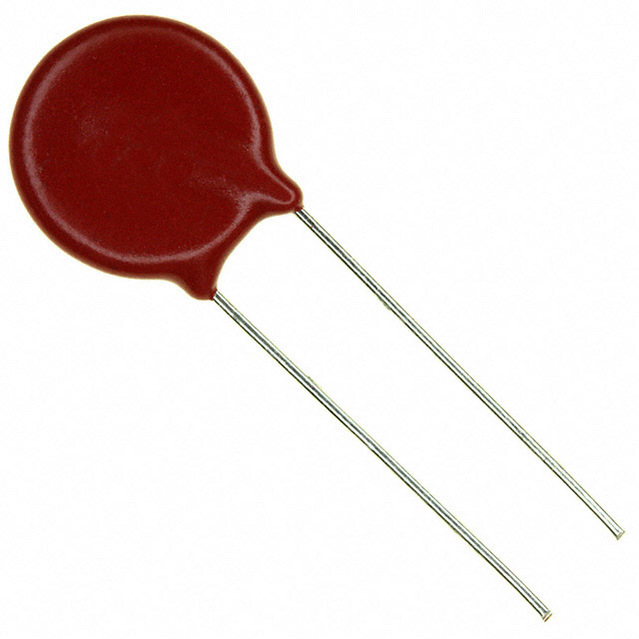

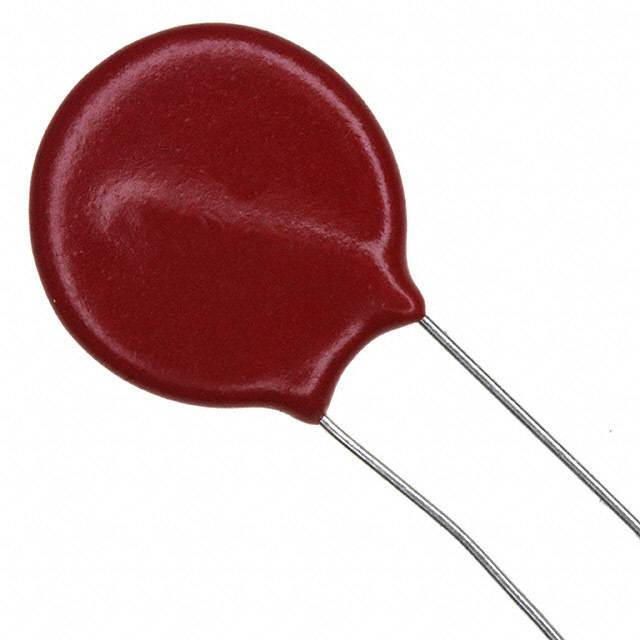

LT 系列 324 V 50 A 550 pF 4.5 kA 径向 通孔 压敏电阻
Are you looking for a nonlinear resistor? This MOV from will exceed your needs! This part has a pitch of 8.5 mm. Its maximum surge current is 4500 A. This device"s clamping current is 50 A and clamping voltage is 595 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its capacitance value is 550pF. This device utilizes metal oxide technology. This varistor has a voltage of 396 V. This product is 22.5 mm tall and 5.6 mm deep with a diameter of 17 mm. The maximum AC voltage rating is 230 VAC and the maximum DC voltage rating is 300 VDC.
额定电压DC 300 V
额定电压AC 230 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 550 pF
电路数 1
钳位电压 595 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 300 V
额定电压AC Max 230 V
安装方式 Through Hole
封装 Disc 14mm
宽度 5.6 mm
高度 22.5 mm
封装 Disc 14mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V230LT20AP Littelfuse 力特 | 当前型号 | 当前型号 |
V230LT20A 力特 | 完全替代 | V230LT20AP和V230LT20A的区别 |
V230LA20APX1347 力特 | 完全替代 | V230LT20AP和V230LA20APX1347的区别 |
V230LU20AP 力特 | 完全替代 | V230LT20AP和V230LU20AP的区别 |
