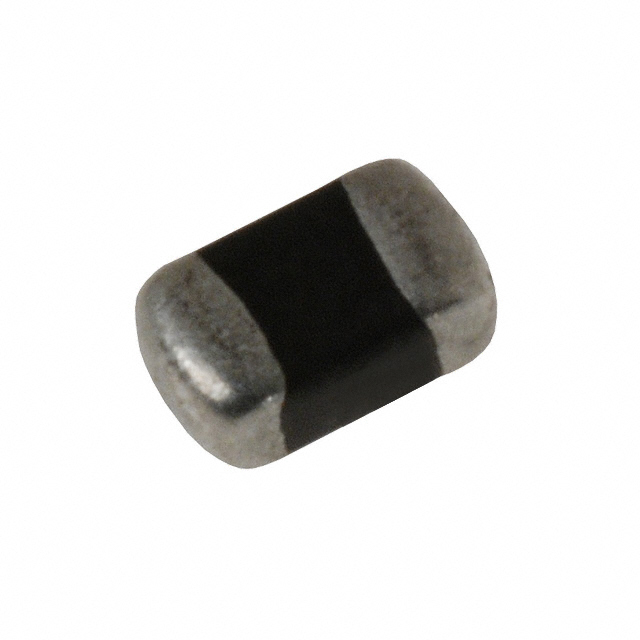

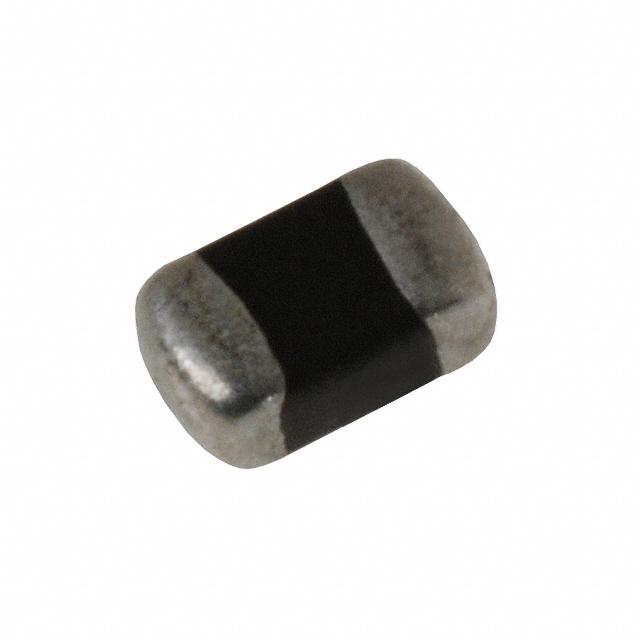

ML系列 26 VDC 20V RMS 60V 钳位 100A 220pF 表面贴装 压敏电阻
变阻器 电路 表面贴装,MLCV 0805(2012 公制)
得捷:
VARISTOR 34V 100A 0805
贸泽:
Varistors 26V 100A 90pF
艾睿:
Apply different voltages to this V26MLA0805H MOV from Littelfuse in order to change resistance of it. This device&s;s clamping current is 1 A and clamping voltage is 60 V. Its maximum surge current is 100 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This varistor has a voltage of 38.5 V. Its capacitance value is 220pF. This product is 2.01 mm long, 1.1 mm tall and 1.25 mm deep. This device utilizes multilayer technology. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 26 VDC.
Chip1Stop:
Var MLV 20VAC/26VDC 100A 38.5V 0805 SMD Automotive T/R
Verical:
Var MLV 20VAC/26VDC 100A 38.5V 0805 SMD T/R
Newark:
# LITTELFUSE V26MLA0805H TVS Varistor, 20 V, 26 V, MLA Series, 60 V, 0805 [2012 Metric], Multilayer Varistor MLV
儒卓力:
**MLA 0805 DC=26V CL=60V 0,3J **
额定电压DC 26 V
额定电压AC 20 V
额定电流 1 mA
电容 220 pF
额定功率 50.0 mW
电路数 1
易燃性等级 UL 94 V-0
钳位电压 60 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 26 V
额定电压AC Max 20 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.01 mm
宽度 1.25 mm
高度 1.1 mm
封装公制 2012
封装 0805
材质 Ceramic Multilayer
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V26MLA0805H Littelfuse 力特 | 当前型号 | 当前型号 |
V26MLA0805LNH 力特 | 类似代替 | V26MLA0805H和V26MLA0805LNH的区别 |
V26MLA0805A 力特 | 类似代替 | V26MLA0805H和V26MLA0805A的区别 |
2322 574 12003 威世 | 类似代替 | V26MLA0805H和2322 574 12003的区别 |
