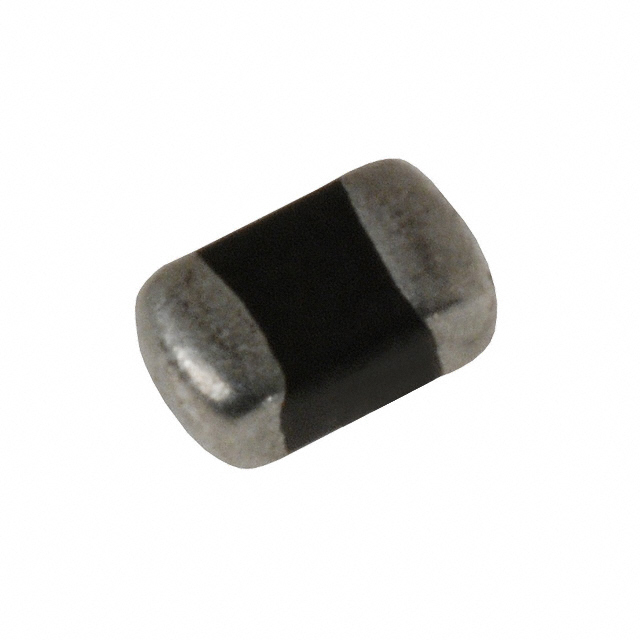

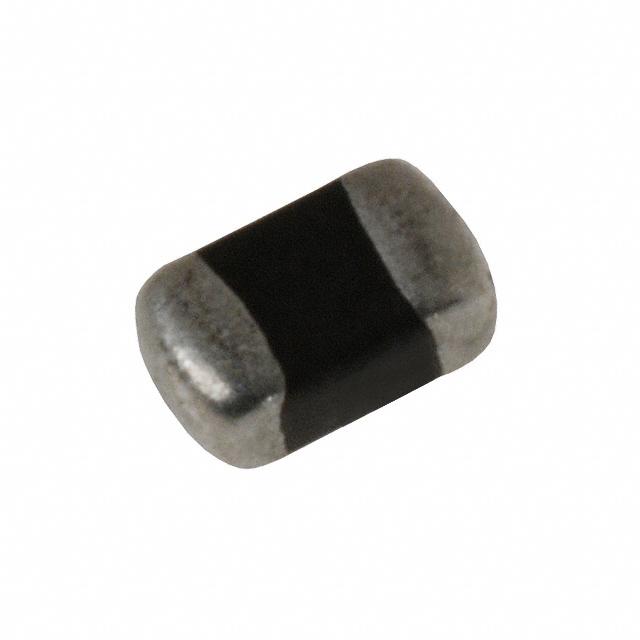

MLE 系列 0805 28 V 1 A 表面贴装 多层 压敏电阻
When different voltages are applied to this MOV from will change resistance. This device"s clamping current is 1 A and clamping voltage is 50 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum DC voltage rating is 18 VDC. This device is made with multilayer technology. Its capacitance value is 500pF. This product is 2.01 mm long, 1.1 mm tall and 1.25 mm deep. This varistor has a voltage of 28 V.
额定电压DC 18 V
额定电压AC 14.0 V
电容 500 pF
电路数 1
钳位电压 50 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 18 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.01 mm
宽度 1.25 mm
高度 1.1 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V18MLE0805NH Littelfuse 力特 | 当前型号 | 当前型号 |
V18MLE0805NA 力特 | 功能相似 | V18MLE0805NH和V18MLE0805NA的区别 |
V18MLE0805NT 力特 | 功能相似 | V18MLE0805NH和V18MLE0805NT的区别 |
