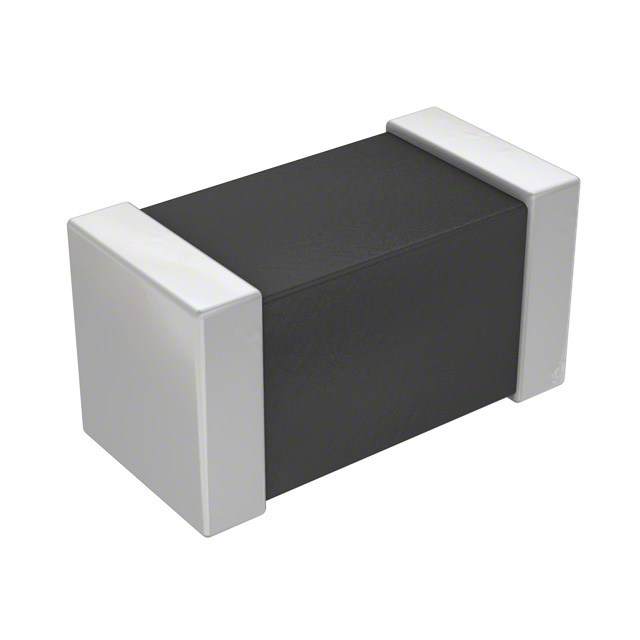

VC120626D580RP

1206 封装 26 V SMD 多层 压敏电阻

变阻器 电路 表面贴装，MLCV 1206（3216 公制）

得捷:
VARISTOR 34.5V 120A 1206

艾睿:
Never worry about improper resistance being seen by your components with this VC120626D580RP MOV from AVX, it will change depending on voltages. This device&s;s clamping current is 1 A and clamping voltage is 60 V. Its maximum surge current is 120 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.2 mm long, 1.02 mm tall and 1.6 mm deep. Its capacitance value is 500pF. This varistor has a voltage of 34.5 V. This device is made with multilayer technology. Its tolerance voltage is 10%. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 26 VDC.

安富利:
Var MLV 20VAC/26VDC 120A 34.5V 1206 SMD T/R

Chip1Stop:
Var MLV 20VAC/26VDC 120A 34.5V 1206 SMD T/R

Verical:
Var MLV 20VAC/26VDC 120A 34.5V 1206 SMD T/R

儒卓力:
**VC 1206 DC=26V CL=60V 0,4J 120A **

Win Source:
VARISTOR 34.5V 120A 1206 / 34.5 V 120 A Varistor 1 Circuit Surface Mount, MLCV 1206 3216 Metric
