VISHAY VS-8ETL06PBF 标准功率二极管, 单, 600 V, 8 A, 1.05 V, 150 ns, 175 A
The is an ultra-low VF Hyperfast Rectifier optimized for discontinuous critical mode DCM power factor correction PFC. The minimized conduction loss, optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers. The device is also intended for use as a freewheeling diode in power supplies and other power switching applications.
- .
- Benchmark ultralow forward voltage drop
- .
- Low leakage current
正向电压 1.05V @8A
反向恢复时间 150 ns
正向电流 8 A
最大正向浪涌电流（Ifsm） 175 A
正向电压Max 1.05 V
工作温度Max 175 ℃
安装方式 Through Hole
引脚数 2

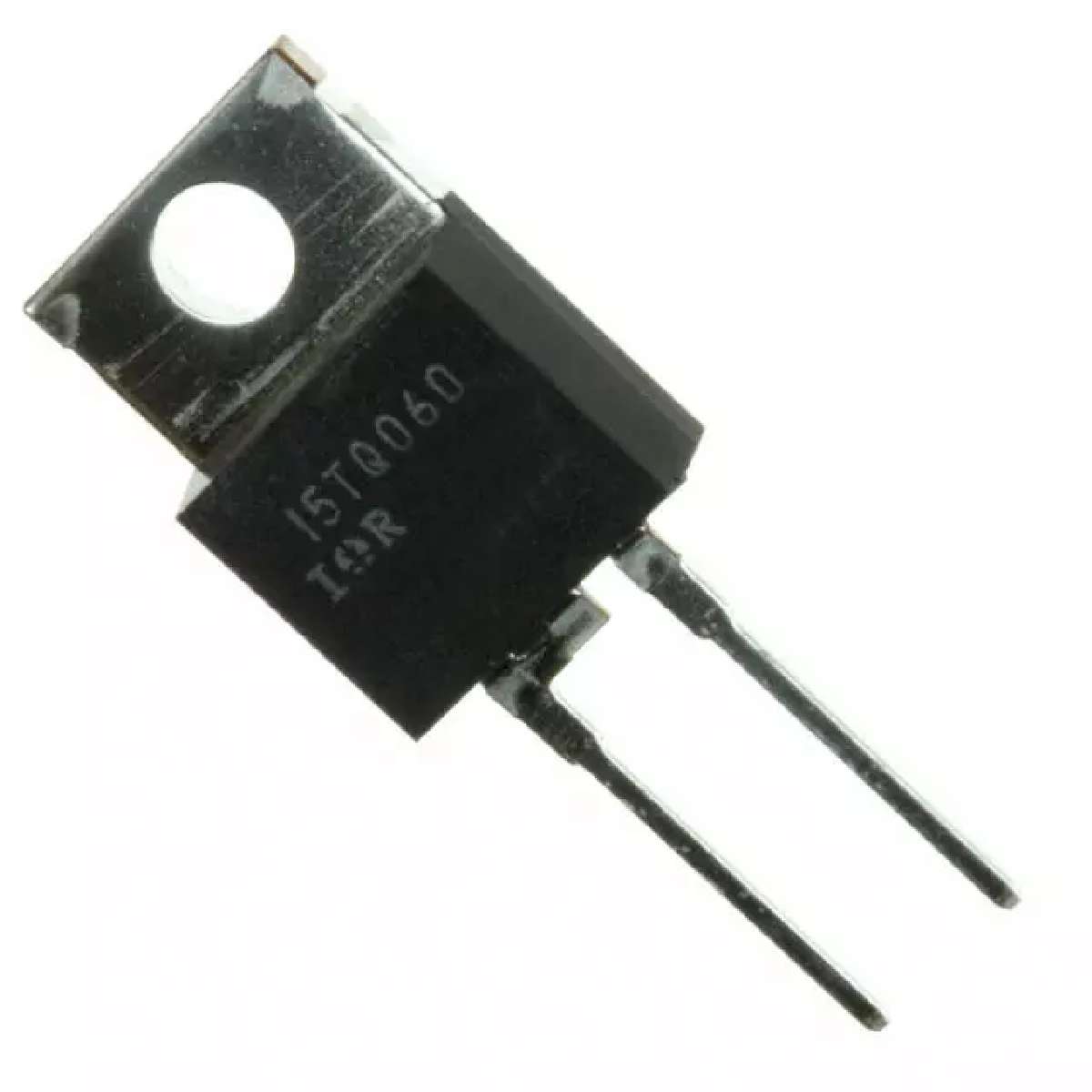

封装 TO-220-2
封装 TO-220-2
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-8ETL06PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-8ETL06FPPBF 威世 | 类似代替 | VS-8ETL06PBF和VS-8ETL06FPPBF的区别 |
8ETL06 威世 | 类似代替 | VS-8ETL06PBF和8ETL06的区别 |
8ETL06PBF 威世 | 类似代替 | VS-8ETL06PBF和8ETL06PBF的区别 |
