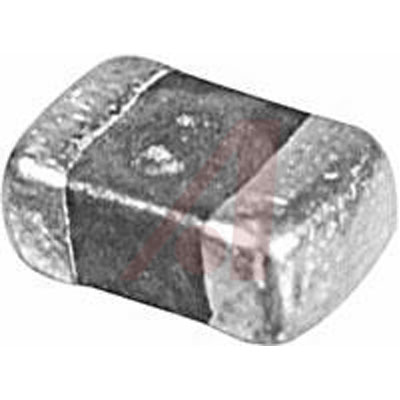

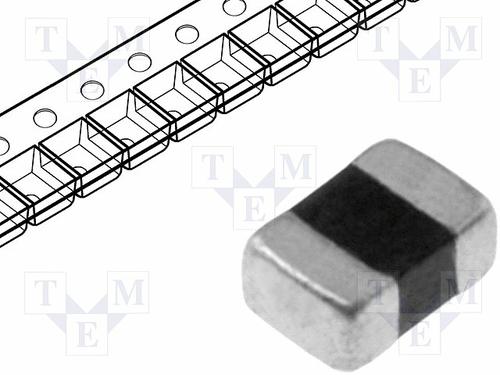

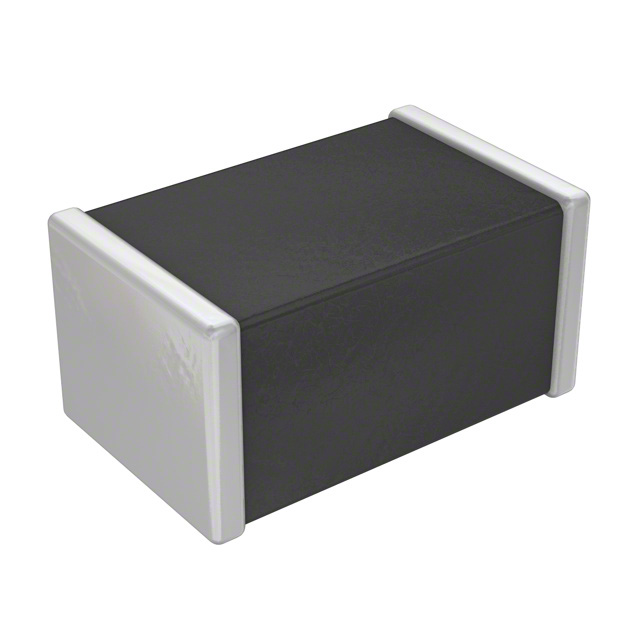

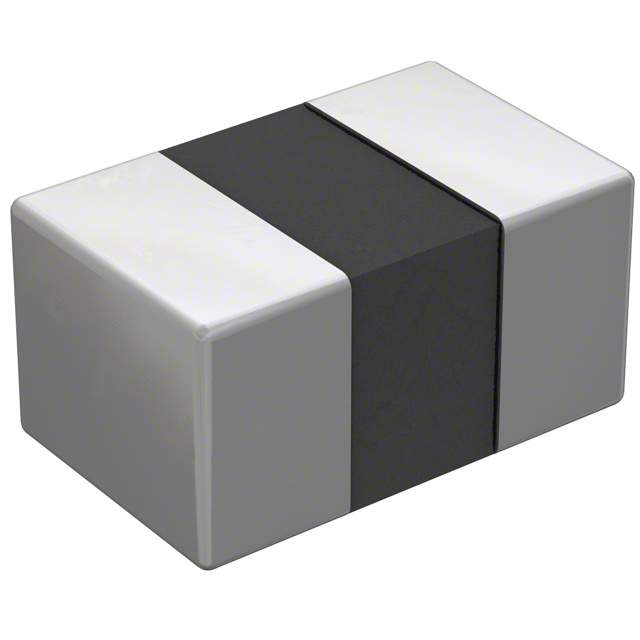

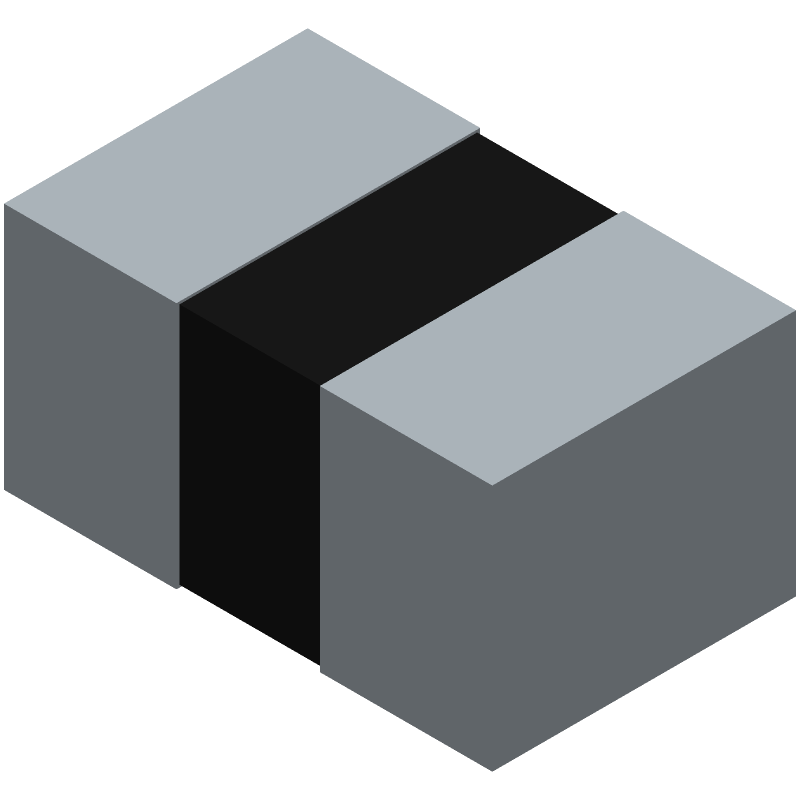

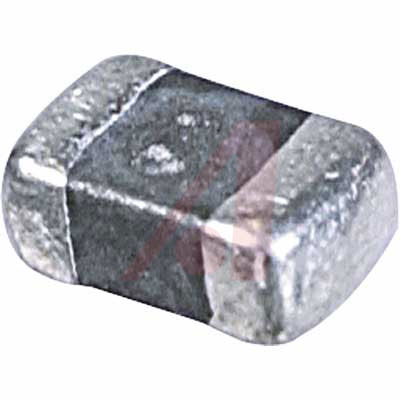

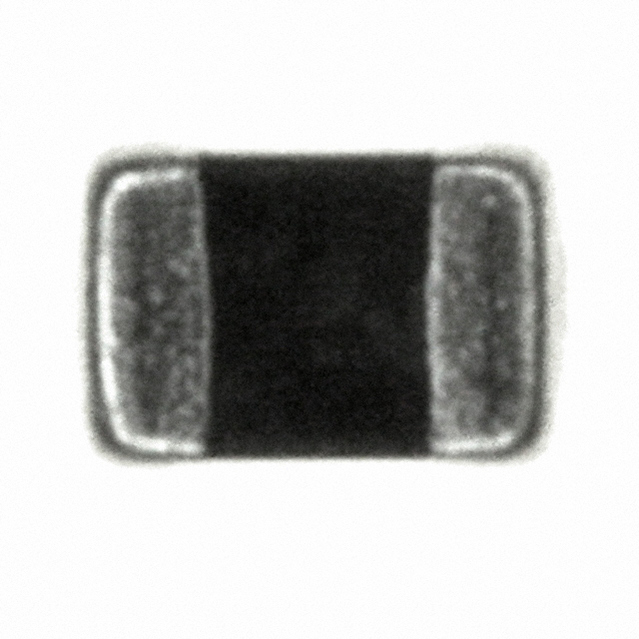

VC080512A250DP

AVX  VC080512A250DP  压敏电阻, 16V, 27V, 0805

TransGuard® Transient Voltage Suppressors TVS with unique high-energy multilayer construction represents state-of-the-art overvoltage circuit protection. Monolithic multilayer construction provides protection from voltage transients caused by ESD, lightning, NEMP, inductive switching, etc. True surface mount product is provided in EIA industry standard packages. Thru-hole components are supplied as conformally coated axial devices. TransGuard® products have non-linear voltage-current characteristics bi-directional similar to back-to-back zener diodes. Devices are fabricated by ceramic sintering process that create varistor-like behavior.

.

*Termination Finish:** Ni/Sn Plated.

**Features:**

* Small Size

* Low Voltage

* Excellent Clamping Ratio

* High Transient Current Capability

* Response Time: Less Than 1 ns

* Monolithic Multilayer Construction

* EMI/RFI Attenuation

* EIA Industry Standard Packages

* Meets IEC 1000-4 Specifications

* Operation Temp: –55°C to +125°C

* Ni/Sn Alloy Plated

**Typical Applications:**

* Computer ESD and I/O Protection

* Automotive Transient Protection

* ESD/EMP Protected Connectors

Data Line Protection

* Telecommunication Transient Protection

* Avionic Transient Protection

* Nuclear Explosion Magnetic Pulse NEMP Protection
