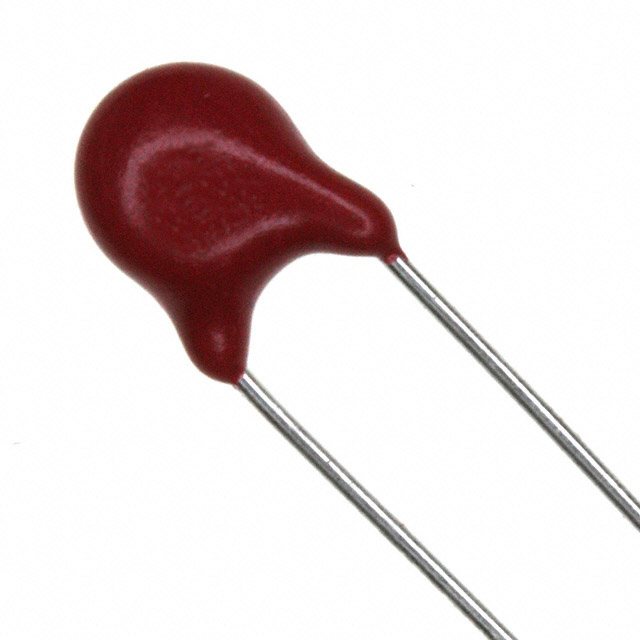

ZA 系列 200 VDC 150 V RMS 395 V 钳位 400 A 90 pF 径向引线 压敏电阻
Look no further, this MOV from is a variable resistor. This part has a pitch of 6 mm. Its maximum surge current is 400 A. This device"s clamping current is 5 A and clamping voltage is 395 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10 mm tall and 5.6 mm deep with a diameter of 7 mm. This device is made with metal oxide technology. The maximum AC voltage rating is 150 VAC and the maximum DC voltage rating is 200 VDC. This varistor has a voltage of 264 V. Its capacitance value is 90pF.
额定电压DC 200 V
额定电压AC 150 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 90 pF
电路数 1
钳位电压 395 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 200 V
额定电压AC Max 150 V
安装方式 Through Hole
封装 Disc 5mm
宽度 5.6 mm
高度 10 mm
封装 Disc 5mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V240ZA05P Littelfuse 力特 | 当前型号 | 当前型号 |
V240ZA05PX2855 力特 | 完全替代 | V240ZA05P和V240ZA05PX2855的区别 |
V240ZA05 力特 | 类似代替 | V240ZA05P和V240ZA05的区别 |
