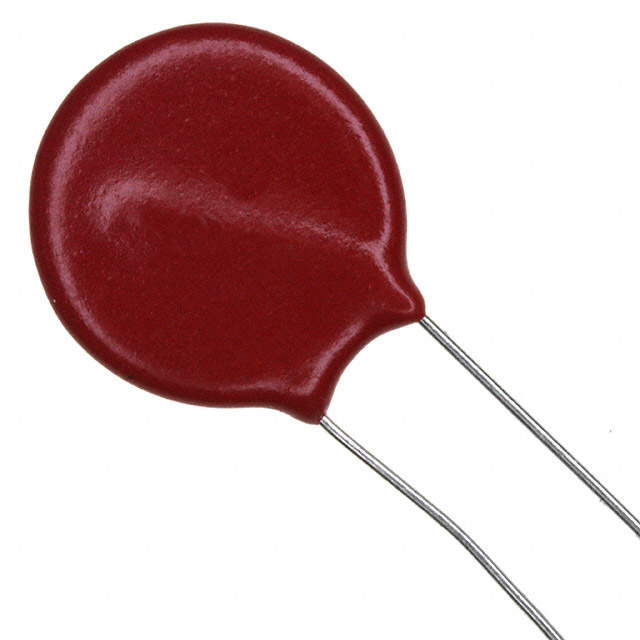

LT系列 200 VDC 150V RMS 430V 钳位 1200A 150pF 径向引线式压敏电阻
When different voltages are applied to this MOV from will change resistance. This part has a pitch of 8.5 mm. This device"s clamping current is 50 A and clamping voltage is 395 V. Its maximum surge current is 4500 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This varistor has a voltage of 268 V. This device utilizes metal oxide technology. The maximum AC voltage rating is 150 VAC and the maximum DC voltage rating is 200 VDC. This product is 22.5 mm tall and 5.6 mm deep with a diameter of 17 mm. Its capacitance value is 800pF.
额定电压DC 200 V
额定电压AC 150 V
电容 800 pF
电路数 1
钳位电压 395 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 200 V
额定电压AC Max 150 V
安装方式 Through Hole
封装 Disc 14mm
宽度 5.6 mm
高度 22.5 mm
封装 Disc 14mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V150LT10AP Littelfuse 力特 | 当前型号 | 当前型号 |
V150LA10APX1347 力特 | 完全替代 | V150LT10AP和V150LA10APX1347的区别 |
V150LS10AP 力特 | 完全替代 | V150LT10AP和V150LS10AP的区别 |
V150LA10APX10 力特 | 完全替代 | V150LT10AP和V150LA10APX10的区别 |
