V68ZT10P

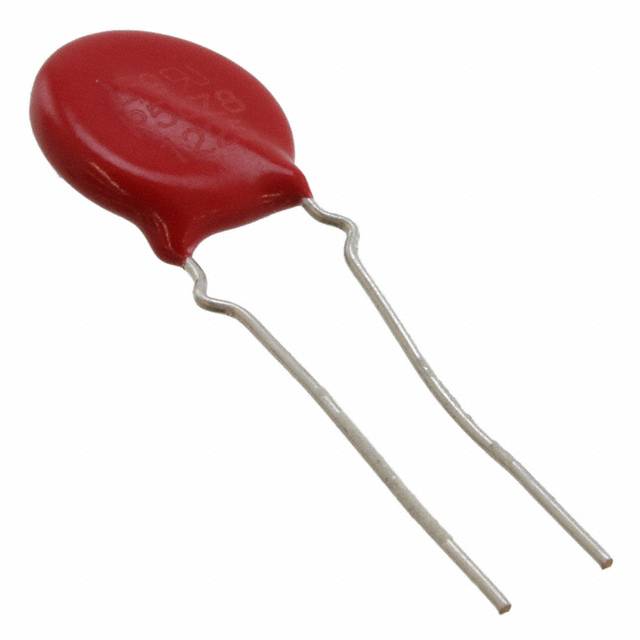

ZT系列 56 VDC 40V RMS 135V 钳位 1000A 330pF 径向引线式压敏电阻

Never worry about improper resistance being seen by your components with this MOV from , it will change depending on voltages. Its maximum surge current is 1000 A. This device"s clamping current is 10 A and clamping voltage is 135 V. This part has a pitch of 8.5 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes metal oxide technology. This product is 22.5 mm tall and 5.6 mm deep with a diameter of 17 mm. This varistor has a voltage of 75 V. Its capacitance value is 0.00387uF. The maximum AC voltage rating is 40 VAC and the maximum DC voltage rating is 56 VDC.
