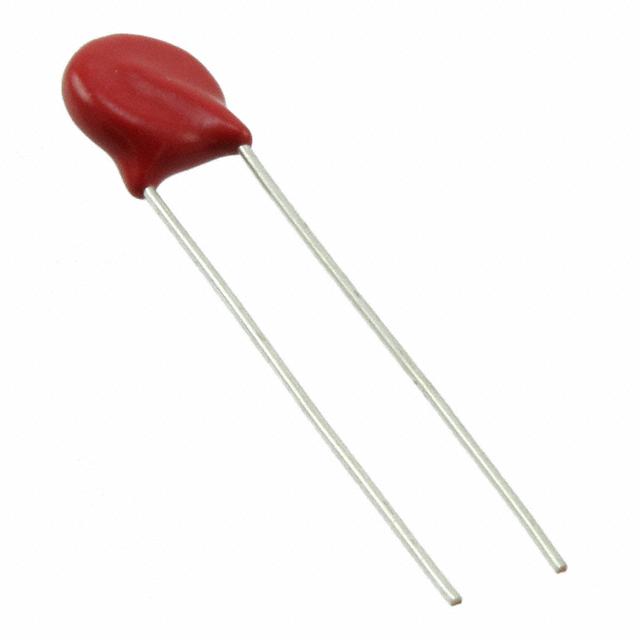

V07E175PL2T5

UltraMOV® 系列 225 VDC 175 V RMS 455 V 钳位 1200A 130 pF 径向引线 压敏电阻

Apply different voltages to this MOV from in order to change resistance of it. This device"s clamping current is 10 A and clamping voltage is 455 V. Its maximum surge current is 1750 A. This part has a pitch of 5 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes metal oxide technology. This varistor has a voltage of 297 V. This product is 15 mm tall and 5.6 mm deep with a diameter of 9 mm. The maximum AC voltage rating is 175 VAC and the maximum DC voltage rating is 225 VDC. Its capacitance value is 130pF.
