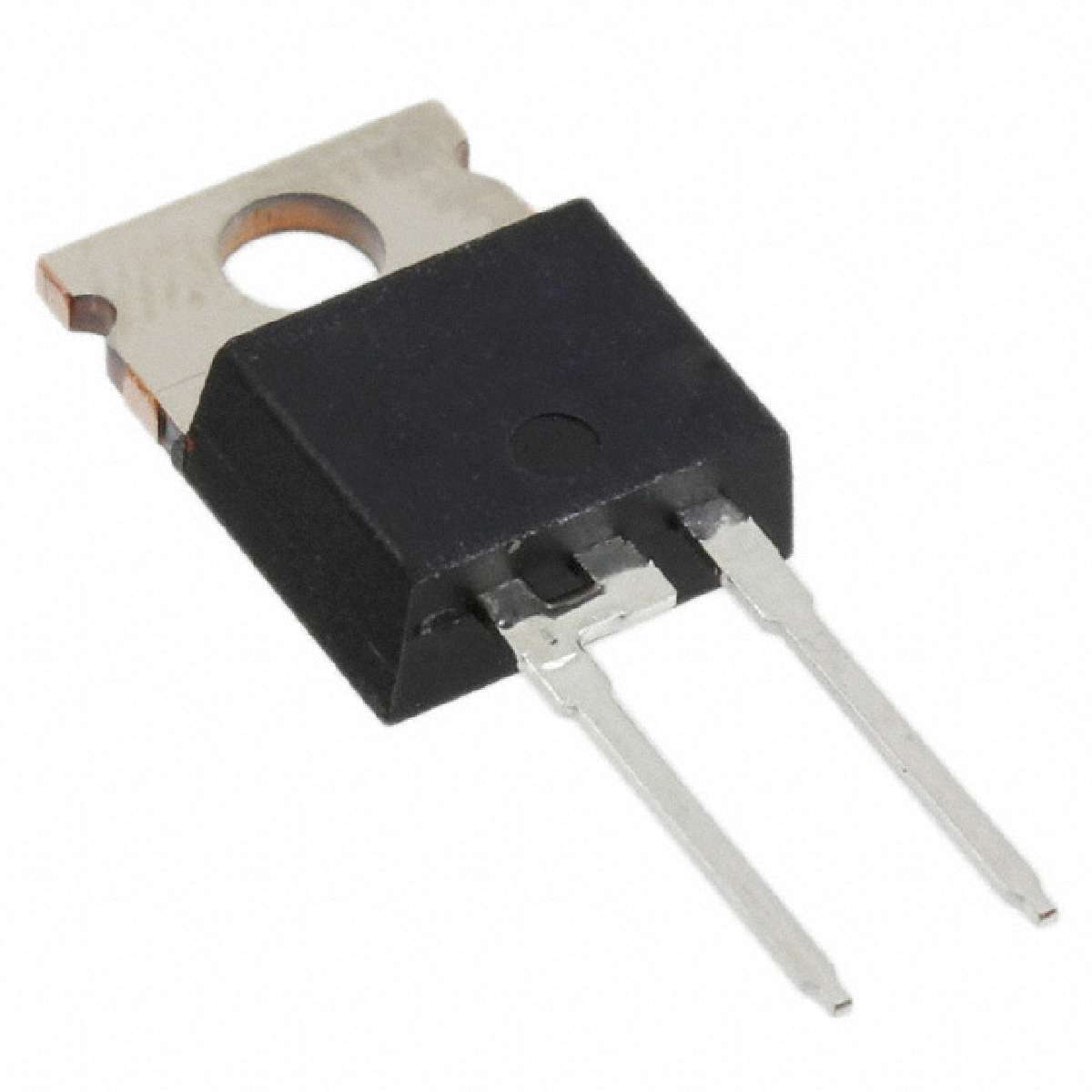

VISHAY VS-8TQ100PBF 肖特基整流器, 单, 100 V, 8 A, TO-220AC, 2 引脚, 720 mV
The is a Schottky Rectifier optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175°C junction temperature. It features high-purity, high-temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance. Typical applications are in switching power supplies, converters, free-wheeling diodes and reverse battery protection.
- .
- High frequency operation
- .
- Guard-ring for enhanced ruggedness and long term reliability
- .
- Halogen-free
针脚数 2
正向电压 720mV @8A
正向电流 8 A
最大正向浪涌电流（Ifsm） 850 A
正向电压Max 720 mV
正向电流Max 8 A
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 TO-220-2
长度 10.67 mm
宽度 4.83 mm
高度 9.02 mm
封装 TO-220-2
工作温度 55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-8TQ100PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-8TQ080PBF 威世 | 完全替代 | VS-8TQ100PBF和VS-8TQ080PBF的区别 |
8TQ100 威世 | 类似代替 | VS-8TQ100PBF和8TQ100的区别 |
VS-8TQ100GPBF 威世 | 功能相似 | VS-8TQ100PBF和VS-8TQ100GPBF的区别 |
