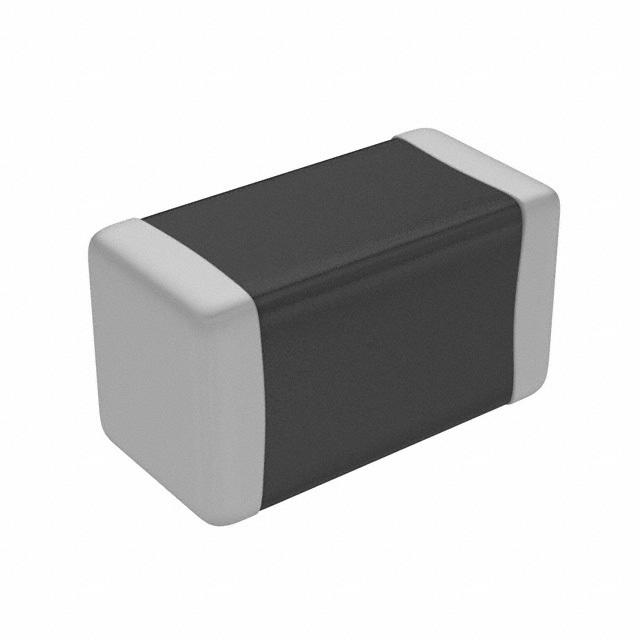

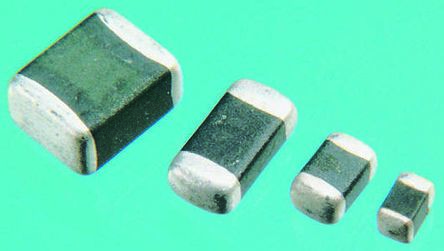

V68MLA1206A

V68MLA1206A图片1
V68MLA1206A图片2
V68MLA1206A图片3
V68MLA1206A图片4
V68MLA1206A图片5
V68MLA1206A图片6
V68MLA1206A图片7
V68MLA1206A图片8
V68MLA1206A图片9
V68MLA1206A概述

SMT 瞬态抑制器 - ML 系列多层半导体陶瓷构造,提供双向钳位电压。 感应开关抑制或其它快速电气瞬态事件,使这些装置有利于实现成品的电磁兼容性。适合于集成电路和晶体管的板载瞬态电压保护 在许多应用场合中可以代替较大的表面安装 TVS 齐纳管 ### 瞬态电压抑制器( 陶瓷)

SMT 瞬态抑制器 - ML 系列

多层半导体陶瓷构造,提供双向钳位电压。 感应开关抑制或其它快速电气瞬态事件,使这些装置有利于实现成品的电磁兼容性。

适合于集成电路和晶体管的板载瞬态电压保护

在许多应用场合中可以代替较大的表面安装 TVS 齐纳管


得捷:
VARISTOR 83V 180A 1206


欧时:
Littelfuse ML 系列 90V 180A 1J 140V钳位电压 表面安装变阻器 V68MLA1206A, 68V最大直流额定电压


贸泽:
Varistors 68V 180A 100pF


艾睿:
Never worry about improper resistance being seen by your components with this V68MLA1206A MOV from Littelfuse, it will change depending on voltages. Its maximum surge current is 180 A. This device&s;s clamping current is 1 A and clamping voltage is 140 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This varistor has a voltage of 90 V. Its capacitance value is 150pF. This product is 3.2 mm long, 1.8 mm tall and 1.6 mm deep. This device utilizes multilayer technology. The maximum AC voltage rating is 50 VAC and the maximum DC voltage rating is 68 VDC.


Allied Electronics:
ML Series 90V 180A 1J 140V Clamp 1206 Surface Mount Varistors


Chip1Stop:
Var MLV 50VAC/68VDC 180A 90V 1206 SMD Automotive Bulk


V68MLA1206A中文资料参数规格
技术参数

额定电压DC 68 V

额定电压AC 50.0 V

电容 180 pF

电路数 1

钳位电压 140 V

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压DC Max 68 V

额定电压AC Max 50 V

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 1.8 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买V68MLA1206A
型号: V68MLA1206A
描述:SMT 瞬态抑制器 - ML 系列 多层半导体陶瓷构造,提供双向钳位电压。 感应开关抑制或其它快速电气瞬态事件,使这些装置有利于实现成品的电磁兼容性。 适合于集成电路和晶体管的板载瞬态电压保护 在许多应用场合中可以代替较大的表面安装 TVS 齐纳管 ### 瞬态电压抑制器( 陶瓷)
替代型号V68MLA1206A
型号/品牌 代替类型 替代型号对比

V68MLA1206A

Littelfuse 力特

当前型号

当前型号

V68MLA1206H

力特

类似代替

V68MLA1206A和V68MLA1206H的区别

V68MLA1206WA

力特

功能相似

V68MLA1206A和V68MLA1206WA的区别
