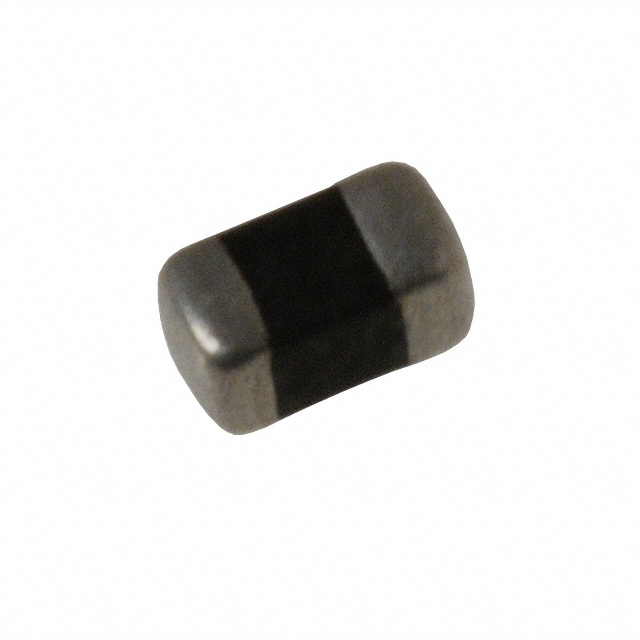

TVS压敏电阻, 25 V, 30 V, MLA Series, 74 V, 0603 [1608 公制], 多层压敏变阻器MLV
41.5 V 30 A 变阻器 1 电路 表面贴装,MLCV 0603(1608 公制)
得捷:
VARISTOR 41.5V 30A 0603
立创商城:
V30MLA0603NH
e络盟:
TVS压敏电阻, 25 V, 30 V, MLA Series, 74 V, 0603 [1608 公制], 多层压敏变阻器MLV
艾睿:
Similar to a diode this V30MLA0603NH MOV manufactured from Littelfuse is a nonlinear component. Its maximum surge current is 30 A. This device&s;s clamping current is 1 A and clamping voltage is 74 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product is 1.6 mm long, 1 mm tall and 0.8 mm deep. This varistor has a voltage of 46 V. The maximum AC voltage rating is 25 VAC and the maximum DC voltage rating is 30 VDC. Its capacitance value is 90pF. This device is made with multilayer technology.
Chip1Stop:
Var MLV 25VAC/30VDC 30A 46V 0603 SMD Automotive T/R
Verical:
Var MLV 25VAC/30VDC 30A 46V 0603 SMD T/R
Win Source:
VARISTOR 41.5V 30A 0603 / 41.5 V 30 A Varistor 1 Circuit Surface Mount, MLCV 0603 1608 Metric
额定电压DC 30 V
额定电压AC 25 V
额定电流 1 mA
电容 45 pF
电路数 1
钳位电压 74 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 30 V
额定电压AC Max 25 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 1 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V30MLA0603NH Littelfuse 力特 | 当前型号 | 当前型号 |
V30MLA0603NR 力特 | 完全替代 | V30MLA0603NH和V30MLA0603NR的区别 |
V30MLA1210NA 力特 | 类似代替 | V30MLA0603NH和V30MLA1210NA的区别 |
V30MLA1210NH 力特 | 功能相似 | V30MLA0603NH和V30MLA1210NH的区别 |
