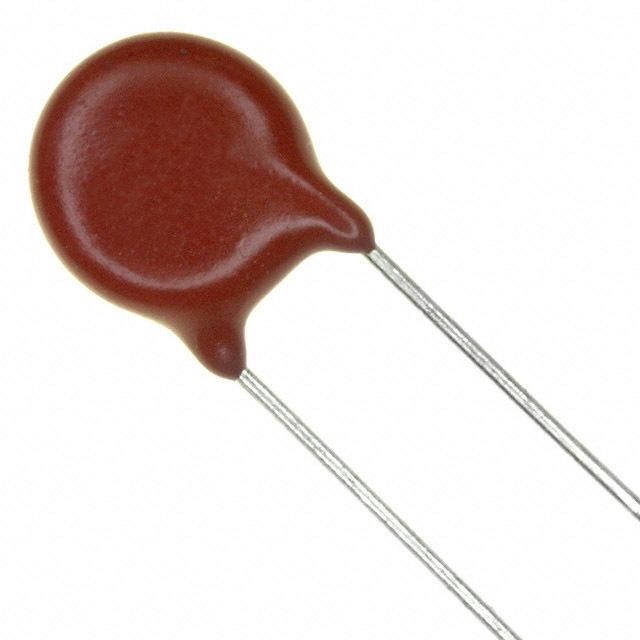

V47ZT3P图片1
V47ZT3P图片2
V47ZT3P图片3
V47ZT3P图片4
V47ZT3P图片5
V47ZT3P图片6
V47ZT3P图片7
V47ZT3P概述

RESISTOR, VOLTAGE DEPENDENT, 38V, 4.5J, THROUGH HOLE MOUNT, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT

Provide proper variable resistance to your circuit by using this MOV from . Its maximum surge current is 500 A. This device"s clamping current is 5 A and clamping voltage is 93 V. This part has a pitch of 8.5 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 19.5 mm tall and 5 mm deep with a diameter of 12.5 mm. Its capacitance value is 0.00259uF. This varistor has a voltage of 52 V. The maximum AC voltage rating is 30 VAC and the maximum DC voltage rating is 38 VDC. This device utilizes metal oxide technology.

V47ZT3P中文资料参数规格
技术参数

额定电压DC 38 V

额定电压AC 30 V

额定电流 500 A

电容 0.00259 µF

电路数 1

钳位电压 93 V

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压DC Max 38 V

额定电压AC Max 30 V

封装参数

安装方式 Through Hole

封装 Disc 10mm

外形尺寸

宽度 5 mm

高度 19.5 mm

封装 Disc 10mm

物理参数

工作温度 -55℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买V47ZT3P
型号: V47ZT3P
描述:RESISTOR, VOLTAGE DEPENDENT, 38V, 4.5J, THROUGH HOLE MOUNT, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT
替代型号V47ZT3P
型号/品牌 代替类型 替代型号对比

V47ZT3P

Littelfuse 力特

当前型号

当前型号

V47ZT3

力特

类似代替

V47ZT3P和V47ZT3的区别

D6121ZOV300RA05

Maida Development

功能相似

V47ZT3P和D6121ZOV300RA05的区别

B72210S0300K101

爱普科斯

功能相似

V47ZT3P和B72210S0300K101的区别
