V85MLA1210H

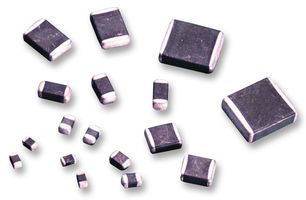

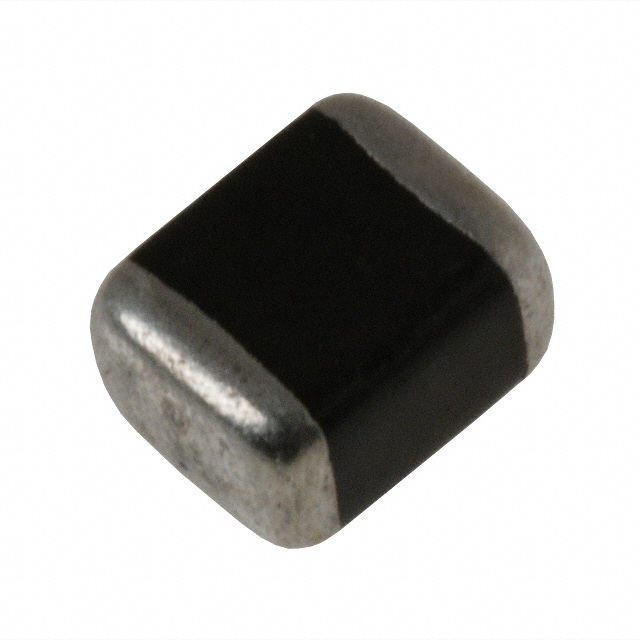

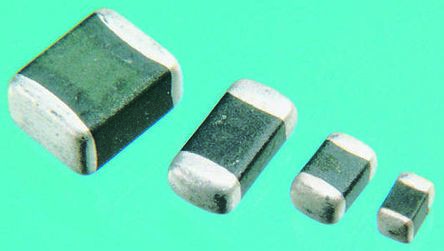

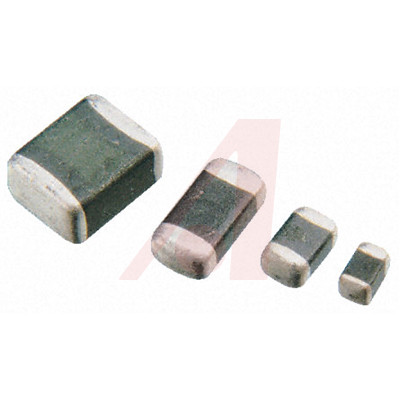

LITTELFUSE  V85MLA1210H  TVS压敏电阻, MOV, MLA系列, 67 V, 85 V, 180 V, 1210 [3225 公制], 多层压敏变阻器MLV

SMT 瞬态抑制器 - ML 系列

多层半导体陶瓷构造，提供双向钳位电压。 感应开关抑制或其它快速电气瞬态事件，使这些装置有利于实现成品的电磁兼容性。

适合于集成电路和晶体管的板载瞬态电压保护

在许多应用场合中可以代替较大的表面安装 TVS 齐纳管

立创商城:
V85MLA1210H 停产

得捷:
VARISTOR 105V 250A 1210

欧时:
Littelfuse ML 系列 260pF 2.5A 180V 金属氧化物压敏电阻 V85MLA1210H, 1210, 3225封装, 3.2 x 2.54 x 2.87mm

艾睿:
Have complete control of resistance in a voltage applied circuit by using this V85MLA1210H MOV developed by Littelfuse. Its maximum surge current is 250 A. This device&s;s clamping current is 2.5 A and clamping voltage is 180 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum AC voltage rating is 67 VAC and the maximum DC voltage rating is 85 VDC. Its capacitance value is 260pF. This product is 3.2 mm long, 2.87 mm tall and 2.54 mm deep. This varistor has a voltage of 115 V. This device utilizes multilayer technology.

Allied Electronics:
Multilayer Varistor 85Vrms 1210 MLA

富昌:
ML 系列 1210 85 VDC 67 V RMS 180 V 钳位 250 A 260 pF 表面贴装 压敏电阻

Chip1Stop:
Var MLV 67VAC/85VDC 250A 115V 1210 SMD Automotive T/R

Verical:
Var MLV 67VAC/85VDC 250A 115V 1210 SMD T/R

Newark:
# LITTELFUSE  V85MLA1210H  TVS Varistor, MOV, 67 V, 85 V, MLA Series, 180 V, 1210 [3225 Metric], Multilayer Varistor MLV

Win Source:
VARISTOR 105V 250A 1210
