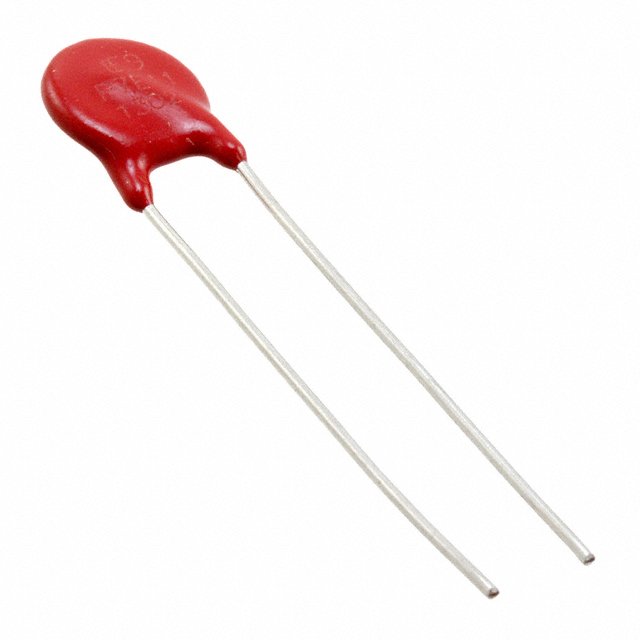

LV UltraMOV™ 系列 45 VDC 35V RMS 110V 钳位 1000A 1200pF 通孔 压敏电阻
56V 1kA Varistor 1 Circuit Through Hole Disc 7mm
立创商城:
V07E35P
得捷:
VARISTOR 56V 1KA DISC 7MM
艾睿:
Apply different voltages to this V07E35P MOV from Littelfuse in order to change resistance of it. Its maximum surge current is 1000 A. This device&s;s clamping current is 2.5 A and clamping voltage is 110 V. This part has a pitch of 6 mm. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This varistor has a voltage of 56 V. The maximum AC voltage rating is 35 VAC and the maximum DC voltage rating is 45 VDC. This product is 12 mm tall and 5.6 mm deep with a diameter of 9 mm. This device utilizes metal oxide technology. Its capacitance value is 0.0012uF.
Chip1Stop:
Var MOV 35VAC/45VDC 1000A 56V Radial Bulk
