AVX V2F105C150Y1FDP 抑制器, TVS, EMI

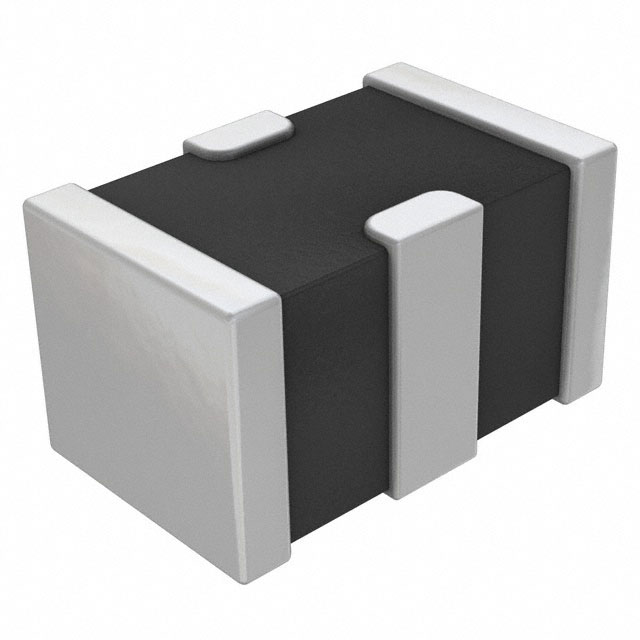

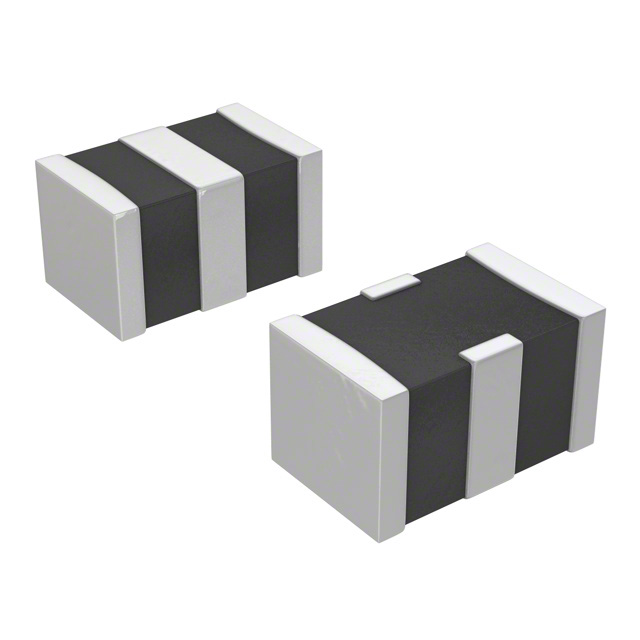

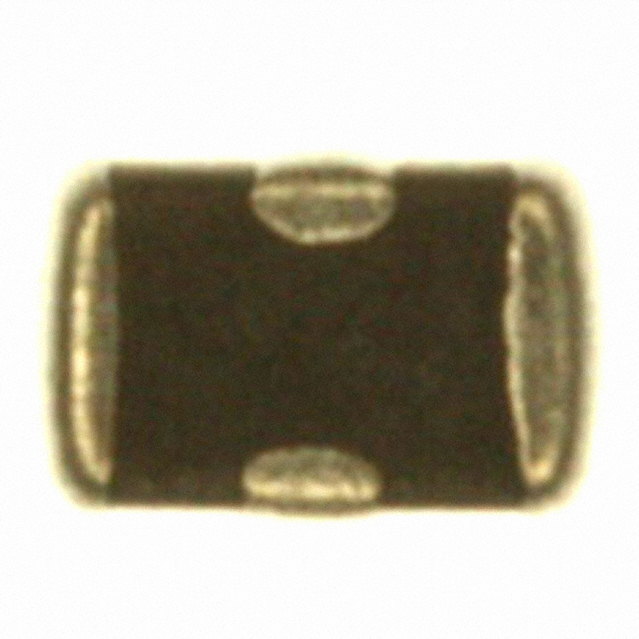

Have complete control of resistance in a voltage applied circuit by using this MOV developed by . This device"s clamping current is 1 A and clamping voltage is 18 V. Its maximum surge current is 120 A. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 4 VAC and the maximum DC voltage rating is 5.6 VDC. This device is made with multilayer technology. Its capacitance value is 0.0025uF. This product is 2.01 mm long, 1.14 mm tall and 1.25 mm deep. Its tolerance voltage is 20%. This varistor has a voltage of 8.5 V.
电源电压DC 5.60V max
额定电压DC 5.6 V
额定电压AC 4 V
工作电压 5.6 V
额定电流 1 A
电容 0.0025 µF
输出电压 ≤18.0 V
电路数 1
钳位电压 18 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 5.6 V
额定电压AC Max 4 V
安装方式 Surface Mount
封装公制 2012
封装 0805

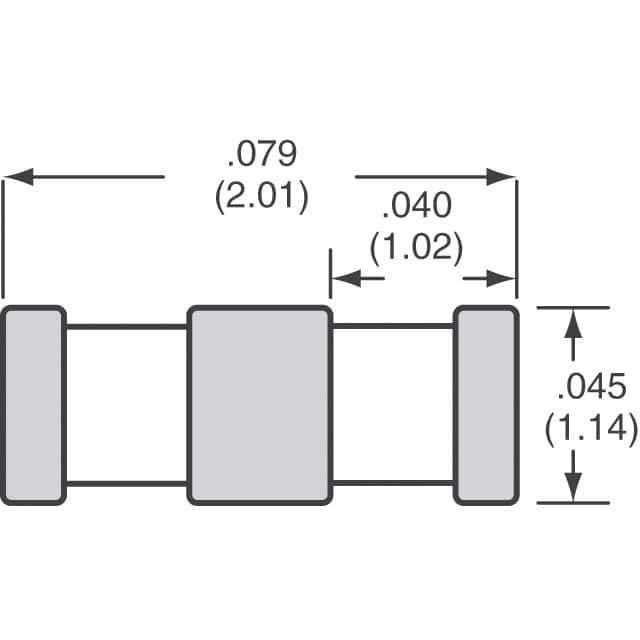

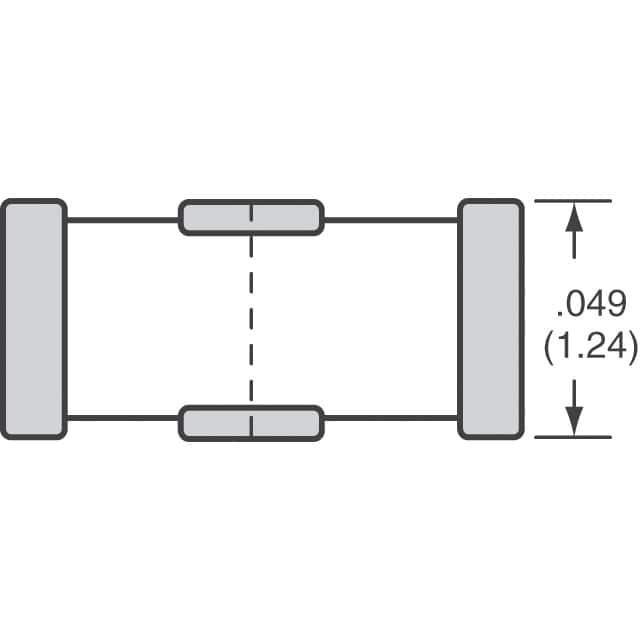

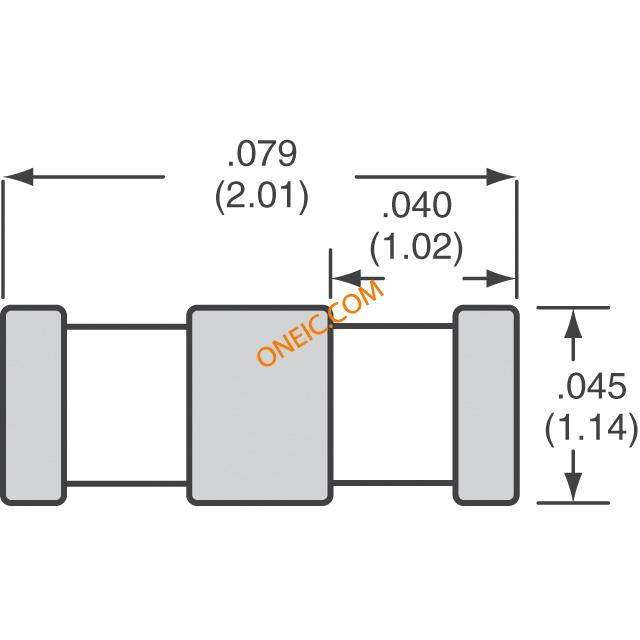

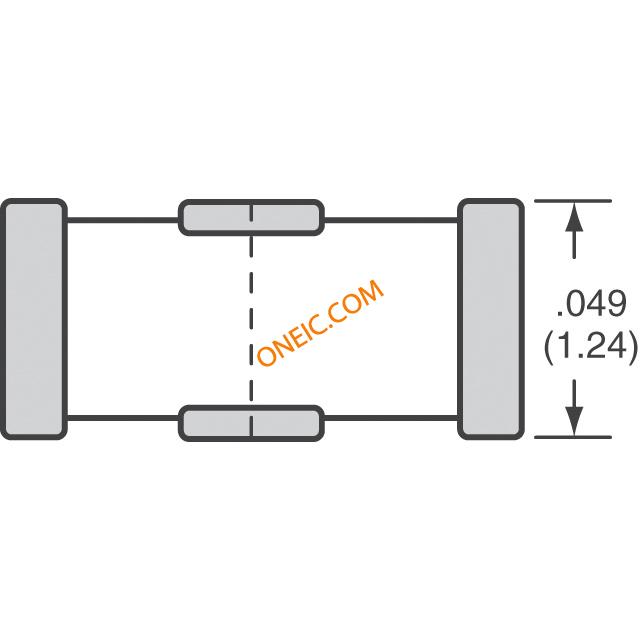

长度 2.01 mm
宽度 1.25 mm
高度 1.143 mm
封装公制 2012
封装 0805
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用, 电信
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V2F105C150Y1FDP AVX 艾维克斯 | 当前型号 | 当前型号 |
V2F105C150Y1FDM 艾维克斯 | 完全替代 | V2F105C150Y1FDP和V2F105C150Y1FDM的区别 |
