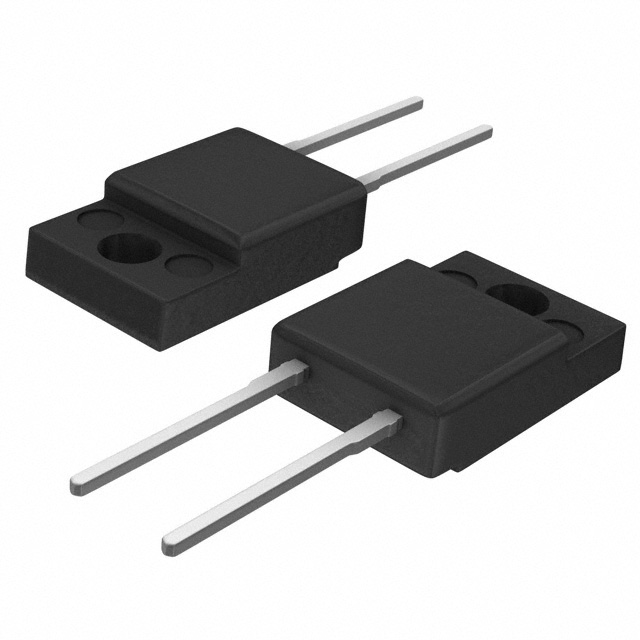

VS-8ETH06FPPBF

VISHAY  VS-8ETH06FPPBF  快速/超快功率二极管, 单, 600 V, 8 A, 2.4 V, 18 ns, 90 A

State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery.

The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in PFC boost stage in the AC-DC section of SMPS, inverters or as freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.

**Features:**

* Hyperfast Recovery Time

* Low Forward Voltage Drop

* Low Leakage Current

* 175°C Operating Junction Temperature

* Fully Isolated Package VINS = 2500 VRMS

* UL E78996 Approved

* Designed and Qualified for Industrial Level
