V30120CHM3/4W

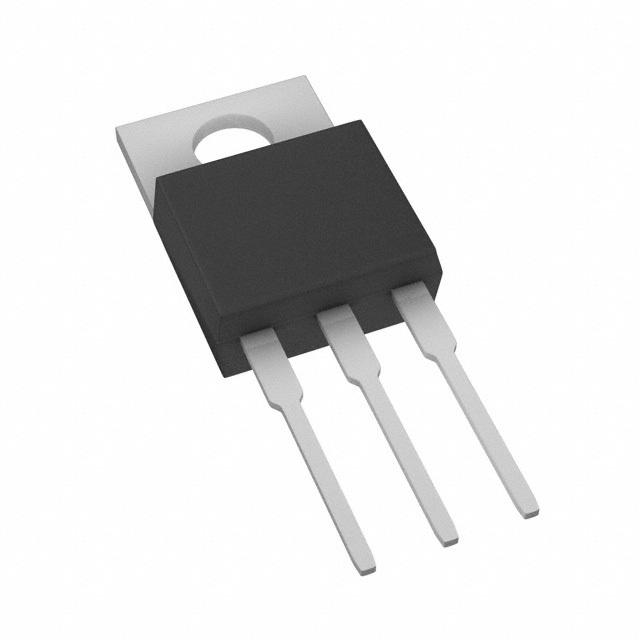

Diode Schottky 120V 30A 3Pin3+Tab TO-220AB Tube

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Ultra Low VF= 0.50 V at IF= 5 A

FEATURES

• Trench MOS Schottky technology

• Low forward voltage drop, low power losses

• High efficiency operation

• Solder dip 275 °C max. 10 s, per JESD 22-B106

• AEC-Q101 qualified

• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

•Halogen-free according to IEC 61249-2-21 definition

TYPICAL APPLICATIONS

For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode,  and reverse battery protection.
