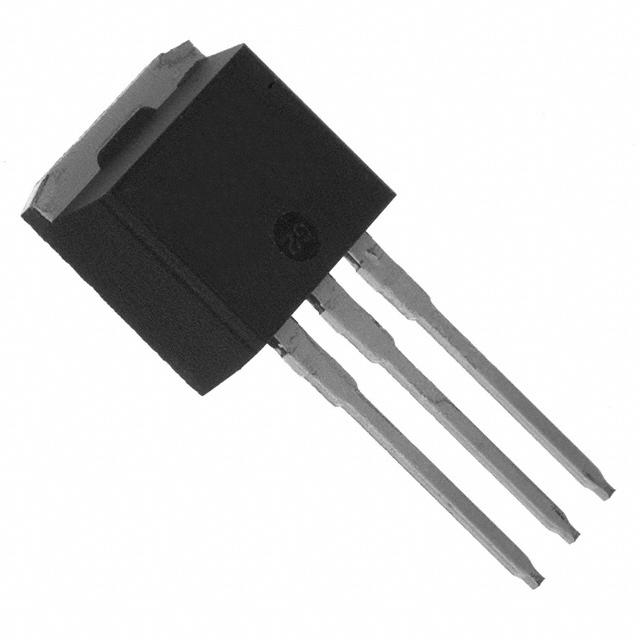

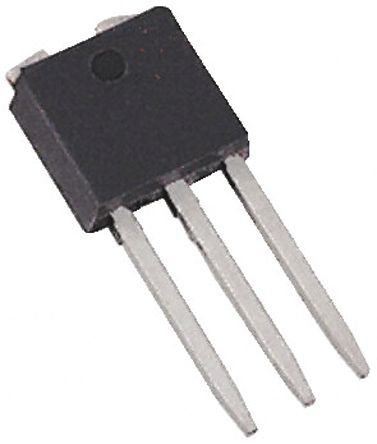

VS-MURB1620CT-1PBF

FRED Pt® 超快恢复整流器，高达 10AVishay FRED Pt®（高速恢复外延二极管）产品系列是超快二极管，包含掺铂 Pt 技术。 此系列在高温度下提供极低泄漏电流，及 175°C 的最高连接温度。 典型恢复时间 60 秒或更少。### 系列特征系列特征 VRRM 从 200V 到 600V 最低 Qrr，125°C 时 最低 VF，IF 时 提高开关模式电源效率 软恢复，用于降低 EMI，在高 dIF/dt 下 TJ（最大）175 °C 符合 AEC-Q101 ### 二极管和整流器，Vishay Semiconductor

DESCRIPTION/APPLICATIONS

MUR.. series are the state of the art ultrafast recovery rectifiers specifically designed with optimized performance of forward voltage drop and ultrafast recovery time. The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability characteristics.

These devices are intended for use in the output rectification stage of SMPS, UPS, dc-to-dc converters as well as freewheeling diode in low voltage inverters and chopper motor drives.

Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.

FEATURES

• Ultrafast recovery time

• Low forward voltage drop

• Low leakage current

• 175 °C operating junction temperature

• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

• Halogen-free according to IEC 61249-2-21 definition

• Compliant to RoHS directive 2002/95/EC

• AEC-Q101 qualified
