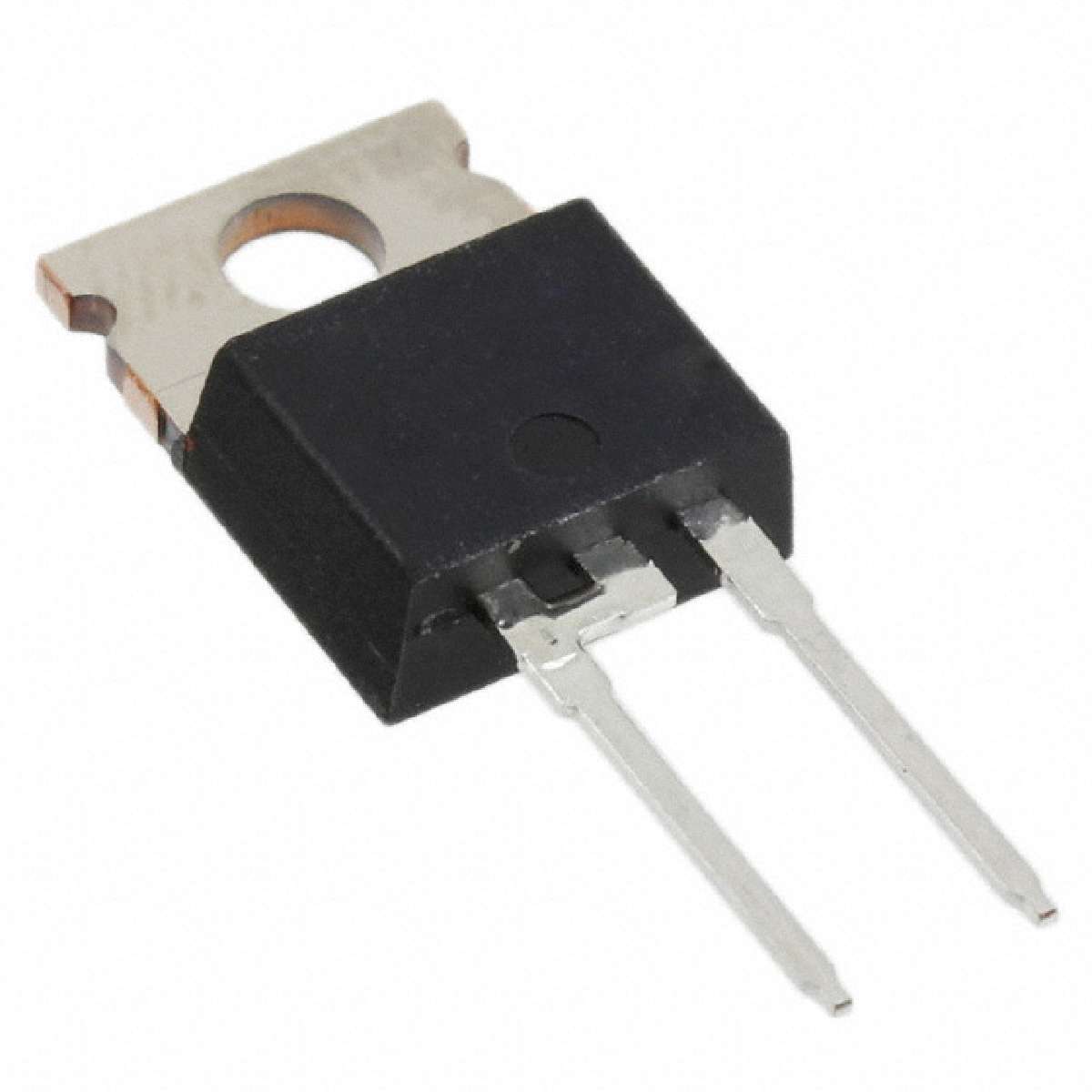

VISHAY VS-MBR1645PBF 肖特基整流器, 单, 45 V, 16 A, TO-220AC, 2 引脚, 630 mV
The is a Schottky Rectifier optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150°C junction temperature. It features high purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance. Typical applications are in switching power supplies, converters, free-wheeling diodes and reverse battery protection.
- .
- High frequency operation
- .
- Guard-ring for enhanced ruggedness and long term reliability
- .
- Halogen-free
针脚数 2
正向电压 630mV @16A
正向电流 16 A
最大正向浪涌电流（Ifsm） 1.8 kA
正向电压Max 630 mV
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Through Hole
引脚数 2
封装 TO-220-2
长度 10.54 mm
宽度 4.7 mm
高度 8.89 mm
封装 TO-220-2
工作温度 65℃ ~ 150℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-MBR1645PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
MBR1645 威世 | 完全替代 | VS-MBR1645PBF和MBR1645的区别 |
MBR1645G 安森美 | 功能相似 | VS-MBR1645PBF和MBR1645G的区别 |
