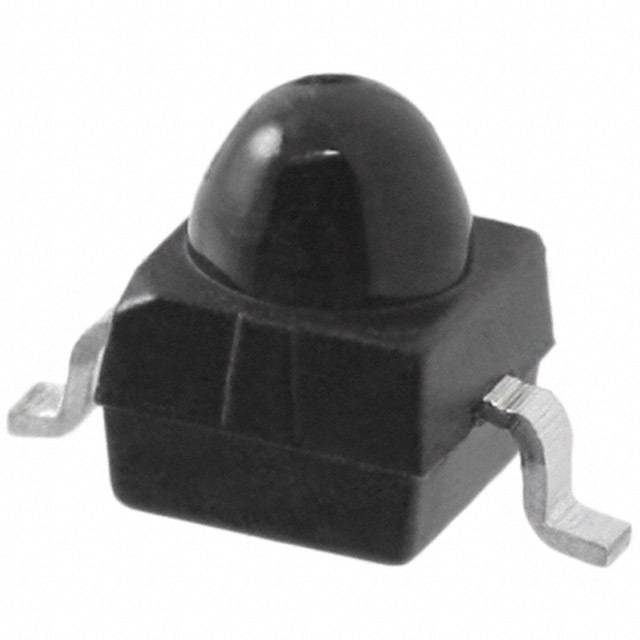

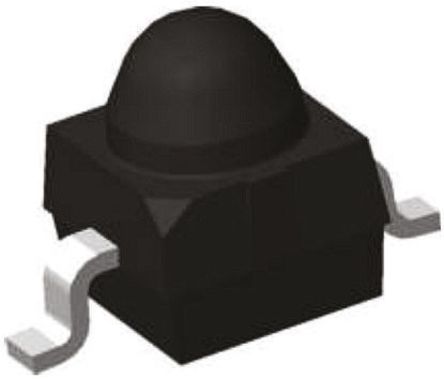

VISHAY VEMD2020X01 光电二极管, SMD, 倒鸥翼引脚
The is a high speed and high sensitive Silicon PIN Photodiode in a miniature surface mount package SMD with dome lens and daylight blocking filter. Filter is matched with IR emitters operating at wavelength of 830 to 950nm. The photo sensitive area of the chip is 0.23mm².
击穿电压 32.0 V
针脚数 2
波长 940 nm
视角 30°
峰值波长 940 nm
耗散功率 215 mW
下降时间Max 100 ns
上升时间Max 100 ns
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 215 mW
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 2.3 mm
宽度 2.3 mm
高度 2.77 mm
封装 SMD-2
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Sensing & Instrumentation, Automation & Process Control, Communications & Networking, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
