VISHAY VS-30CTH03PBF 快速/超快二极管, 双共阴极, 300 V, 30 A, 1.25 V, 36 ns, 150 A
The is a Hyperfast™ Recovery Rectifier designed with optimized performance of forward voltage drop. The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in the output rectification stage of SMPS, UPS, DC/DC converters as well as free-wheeling diodes in low voltage inverters. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
正向电压 1.25V @15A
反向恢复时间 36 ns
正向电流 30 A
最大正向浪涌电流(Ifsm) 150 A
正向电压Max 1.25 V
正向电流Max 30 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Through Hole
引脚数 3

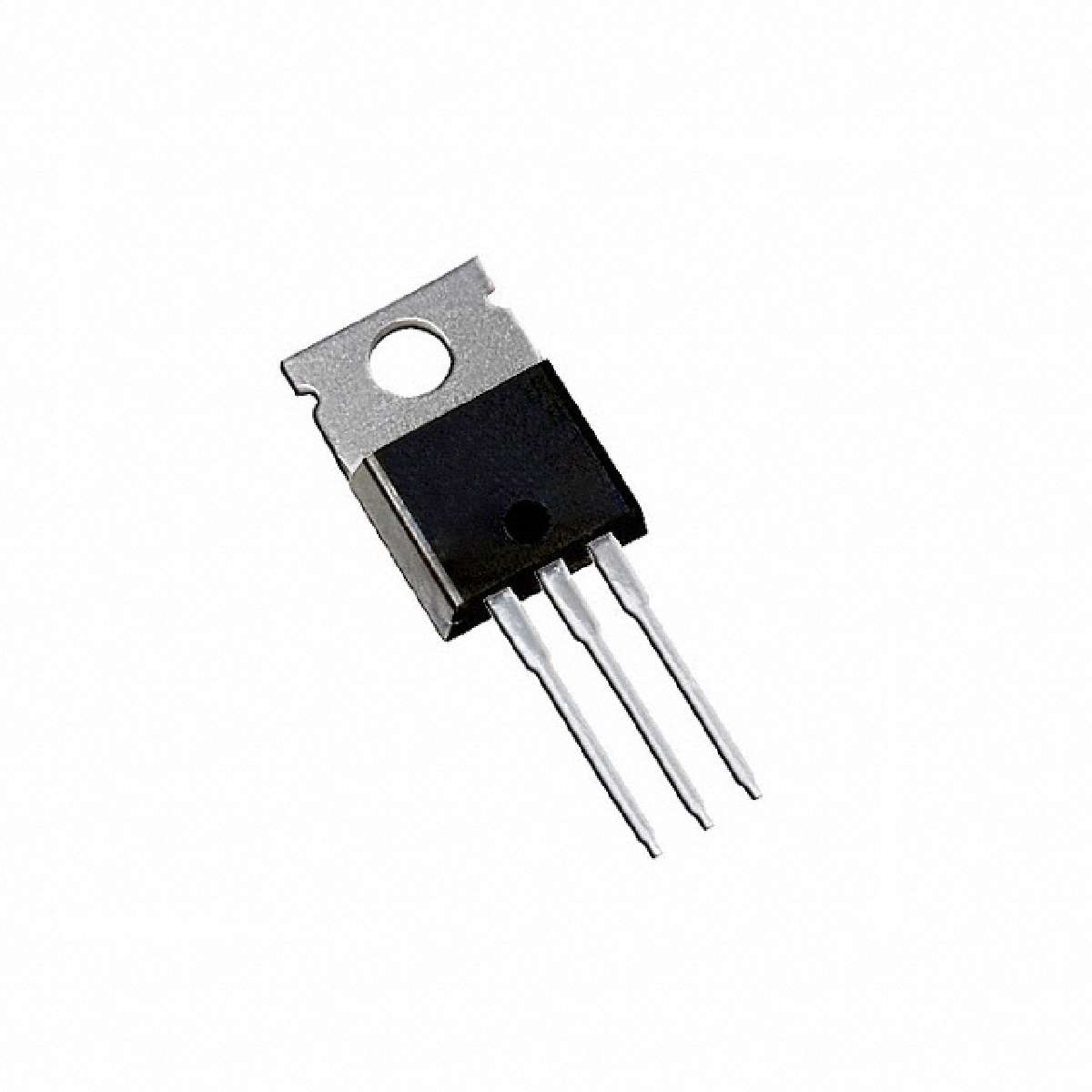

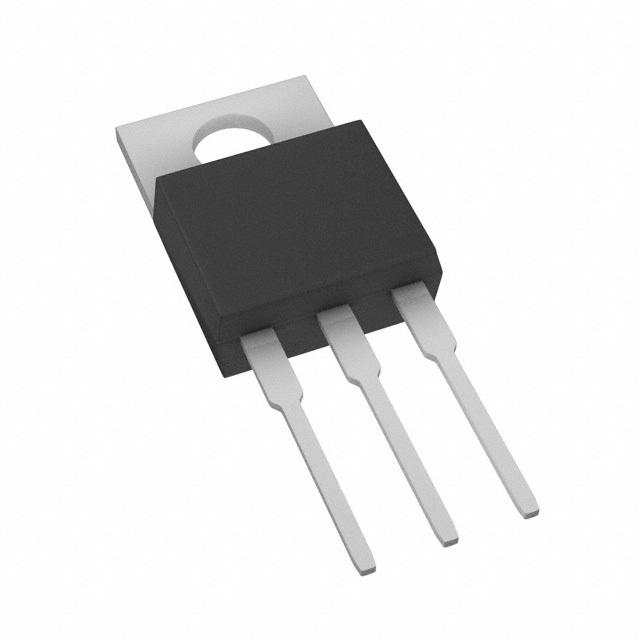

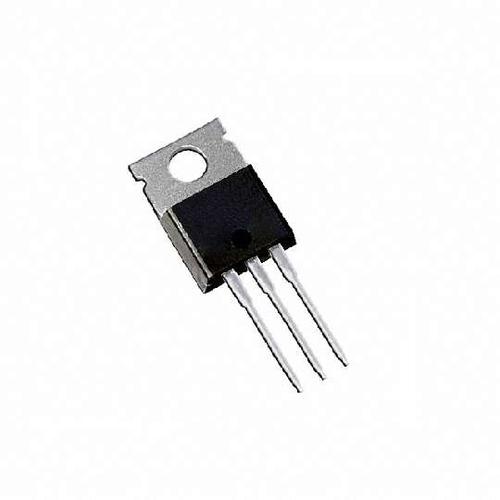

封装 TO-220-3
高度 9.02 mm
封装 TO-220-3
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Industrial, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-30CTH03PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
30CTH03 威世 | 类似代替 | VS-30CTH03PBF和30CTH03的区别 |
30CTH03PBF 威世 | 功能相似 | VS-30CTH03PBF和30CTH03PBF的区别 |
